VIDEO - MASSENZA MI12 ON TRUCK: FULLY EQUIPPED FOR DRILLING BY MUD AND AIR UP TO 350 M

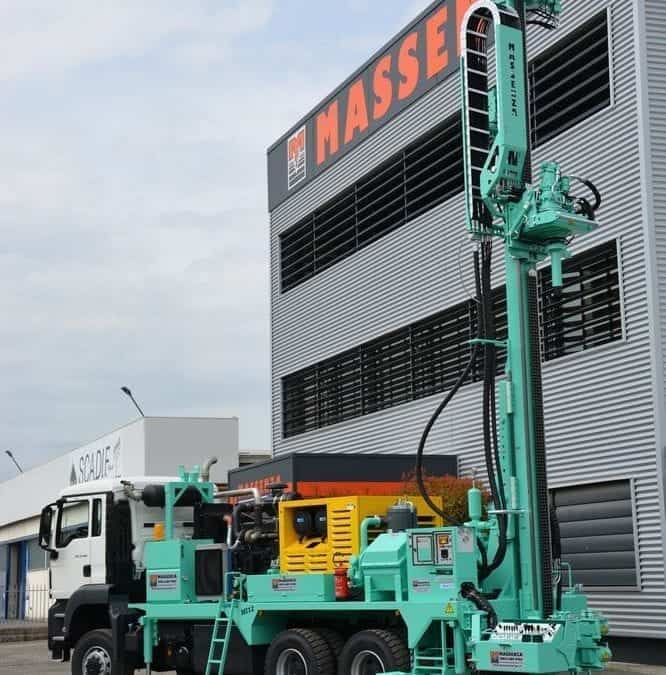

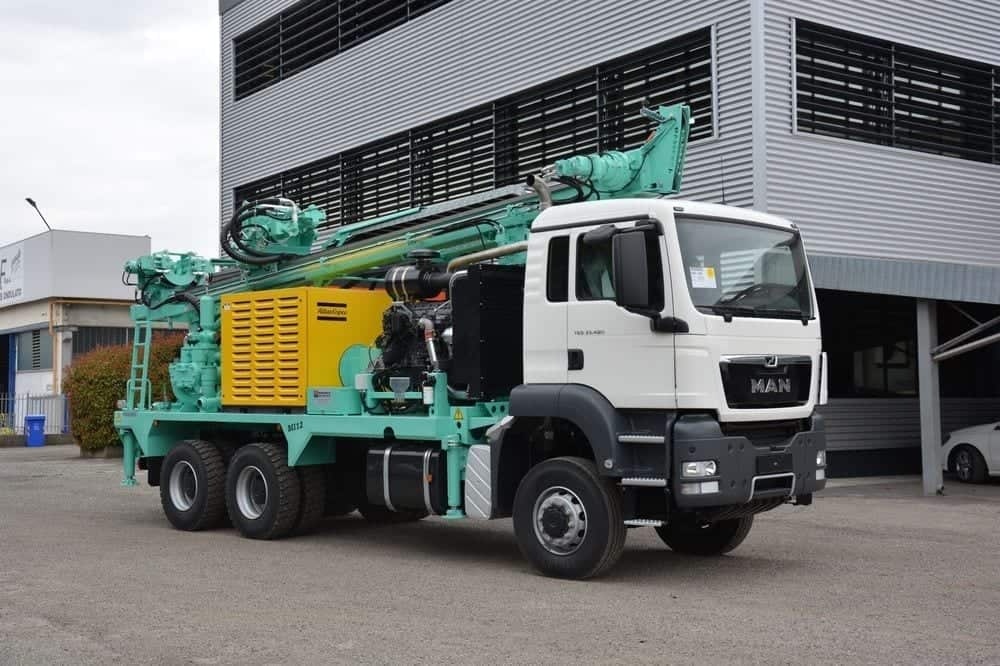

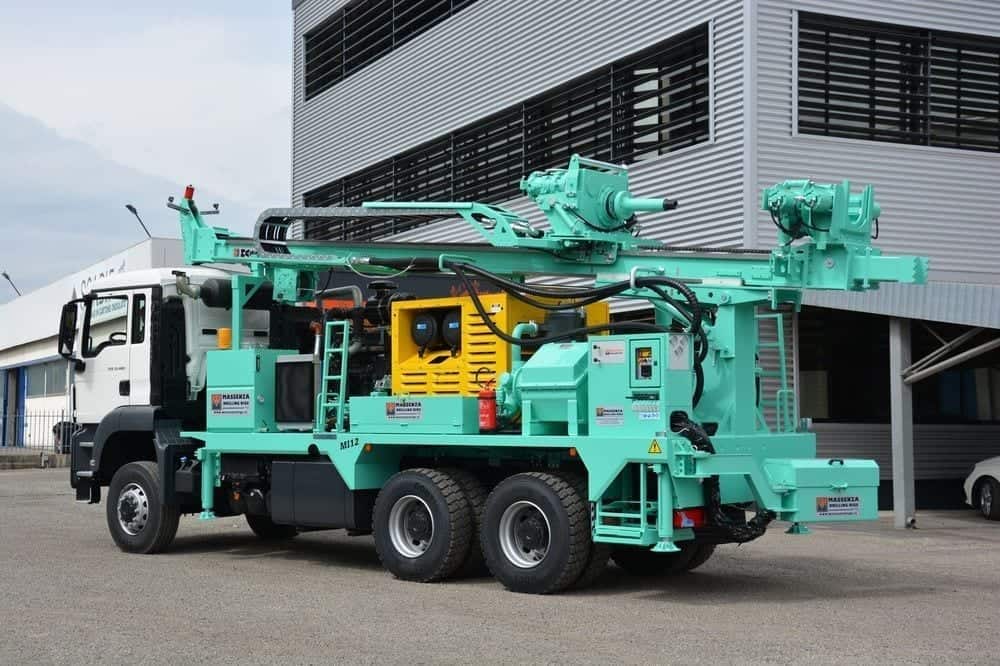

New Massenza MI12 drilling rig: fully equipped for water wells up to 350 m by mud and air drilling.
New 12 TONS pull back drilling rig
On 6x6 MAN truck model TGS 33.480 Euro 5
Powered by PTO
Complete with:
- Atlas Copco air compressor on board powered by a dedicated deck engine with 394 HP
- Duplex mud pump on board with 1140 l/min and 24 bar
- Hydraulic control panel on arm for perfect visibility
- Rotary head with 11.000 Nm of torque and 130 RPM of rotation speed
- Tilting device of the rotary head for fast and easy drill pipes charging operations
- Main winch with direct pull of 3.1 tons
- Double hydraulic clamp with 310 mm passage
