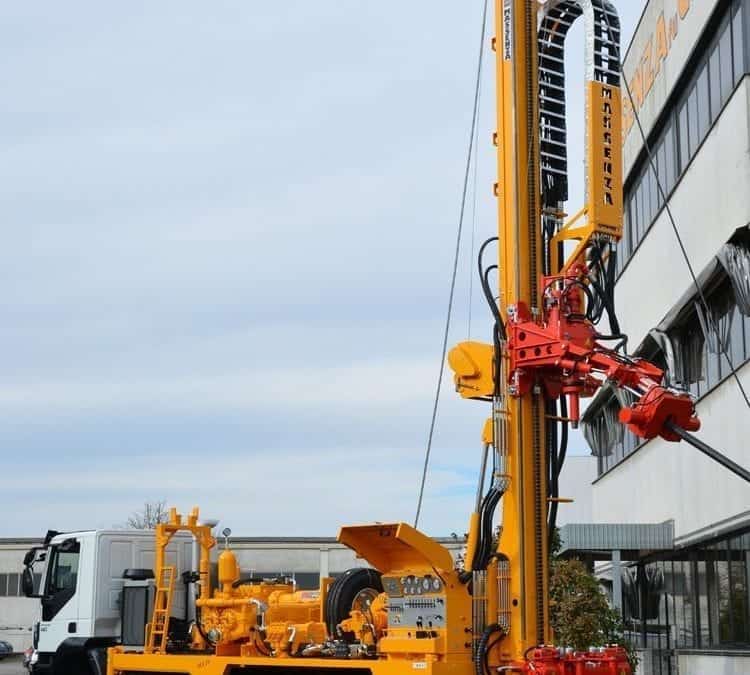

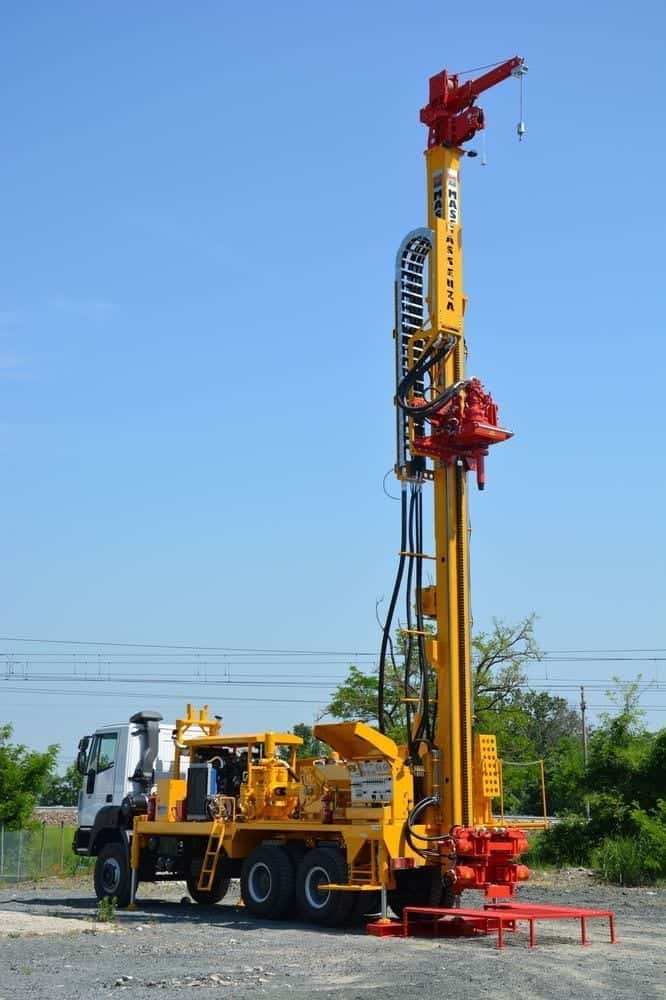

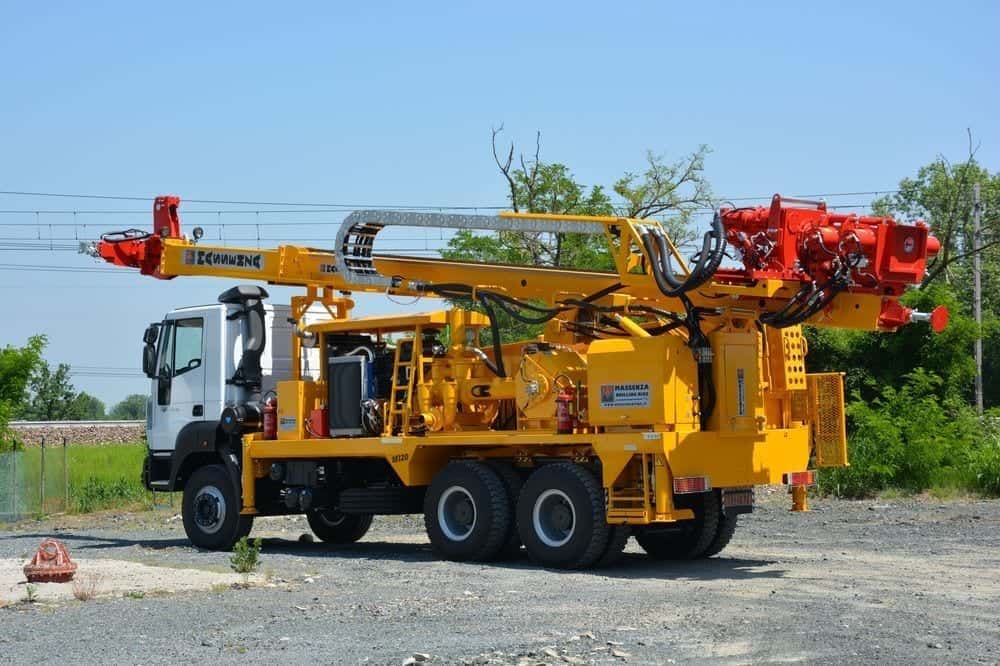

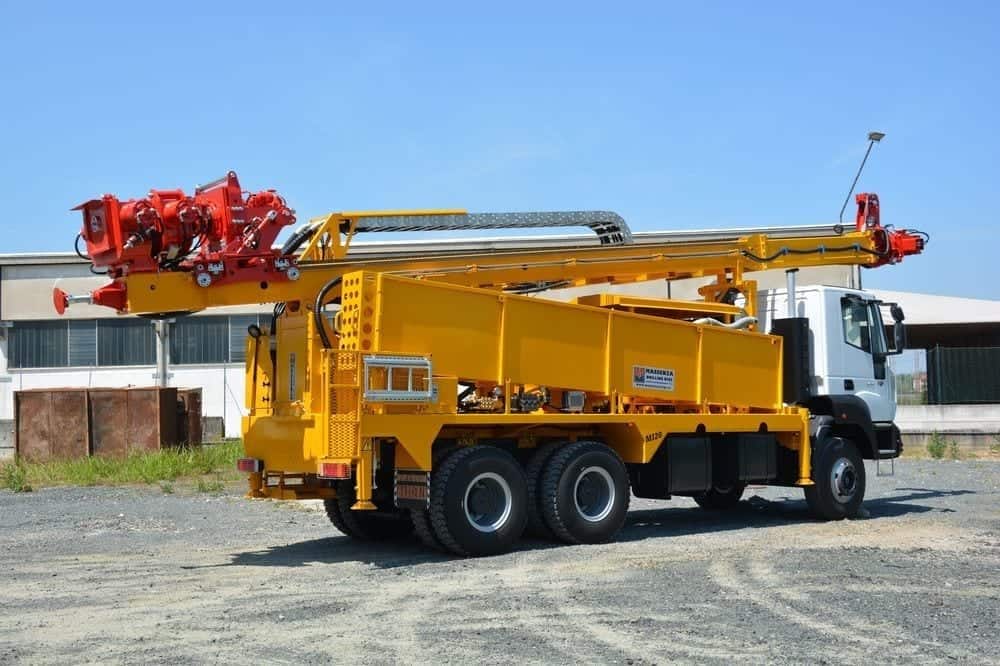

Mounted on truck model IVECO TRAKKER AD380T42H 6x4 Euro 3 (420 HP), the drilling rig is a fully-fledged multipurpose: in fact, thanks to its special rotary head it can perform boreholes for both water and mineral research.
With a 6-speed gearbox rotary head, with 14.250 Nm torque and 720 Rpm maximum available speed, the new Massenza MI20 can do every kind of drilling work.
The 21,5 tons pull-up allows the machine to reach high depths and thanks to the pipes charger arm system, mounted under the rotary head, the drilling operations can be done in full safety and great speed.
Here below the main features of the MI20:
POWERED BY 420 HP PTO OF THE TRUCK
MAST
Max stroke of rotary head 6,7 m (22 ft)
Maximum Pull up and pull down 21.500 daN (48.336 lbf)

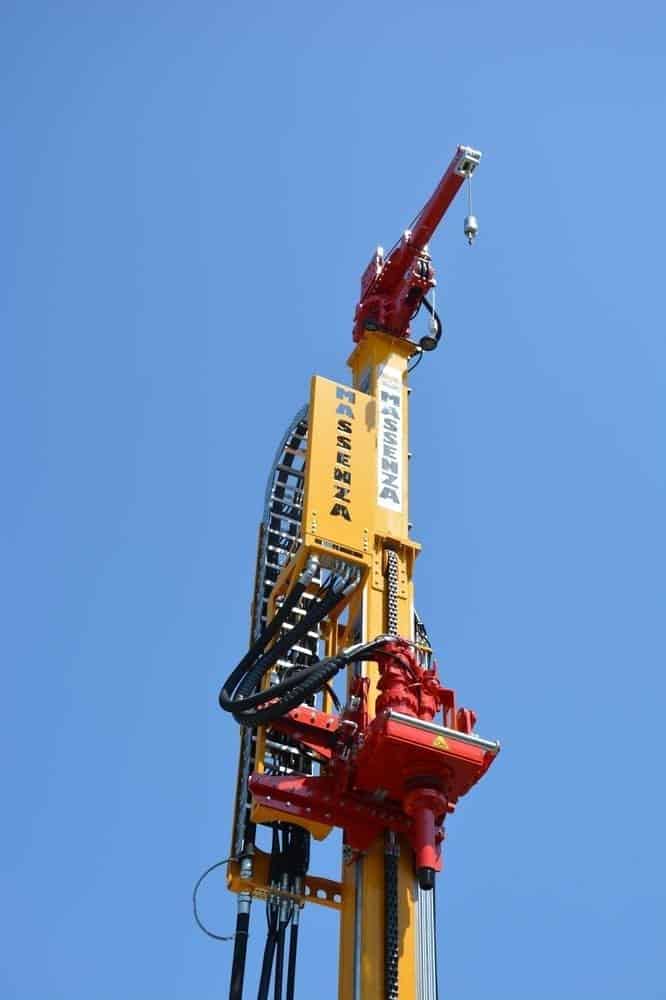

ROTARY HEAD
Maximum torque 14.630 Nm (7.102 lbfft)
Maximum speed 720 Rpm
MAIN WINCH
Maximum line pull 14.200 kg (31.305 lbf)
WIRELINE WINCH
Maximum line pull 1.020 kg (2.248 lbf)
Rope 847 m (2778 ft)

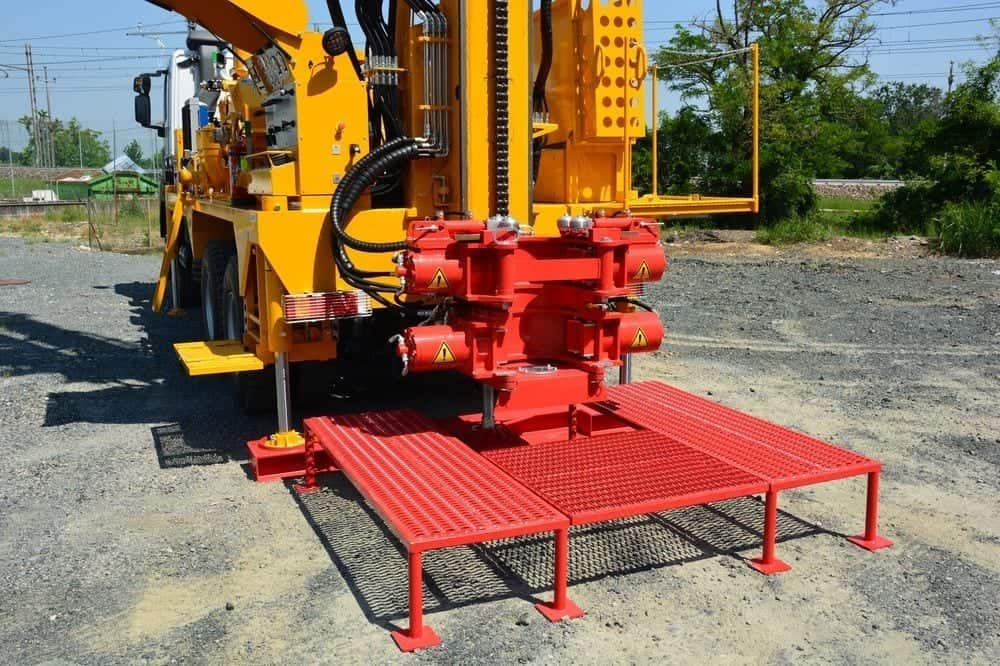

DOUBLE HYDRAULIC CLAMP
Model MS430: maximum passage Ø 430 mm (17)
OPENING CLAMP SYSTEM
Maximum passage Ø 800 mm (31)
MUD PUMP GARDEN DENVER 5"1/2x8"
Maximum output 1200 l/min (317 GPM)
Maximum pressure 80 bar (1.136 PSI)
HIGH PRESSURE TRIPLEX PUMP
Maximum capacity 200 l/min (53 GPM) at 69 bar (1.000 PSI)
