VIDEO - Let's explore the first Jobsite in Ghana of our new Massenza MI12
Let's explore our new Massenza MI12 first Jobsite in Boltatanga, Ghana
The construction site was carried out in Bolgatanga, the capital of the Bolgatanga Municipal District and Upper East Region of Ghana, adjacent to the border with Burkina Faso.
The work consisted in the execution of drilling holes made with Reverse Circulation
Phase 1

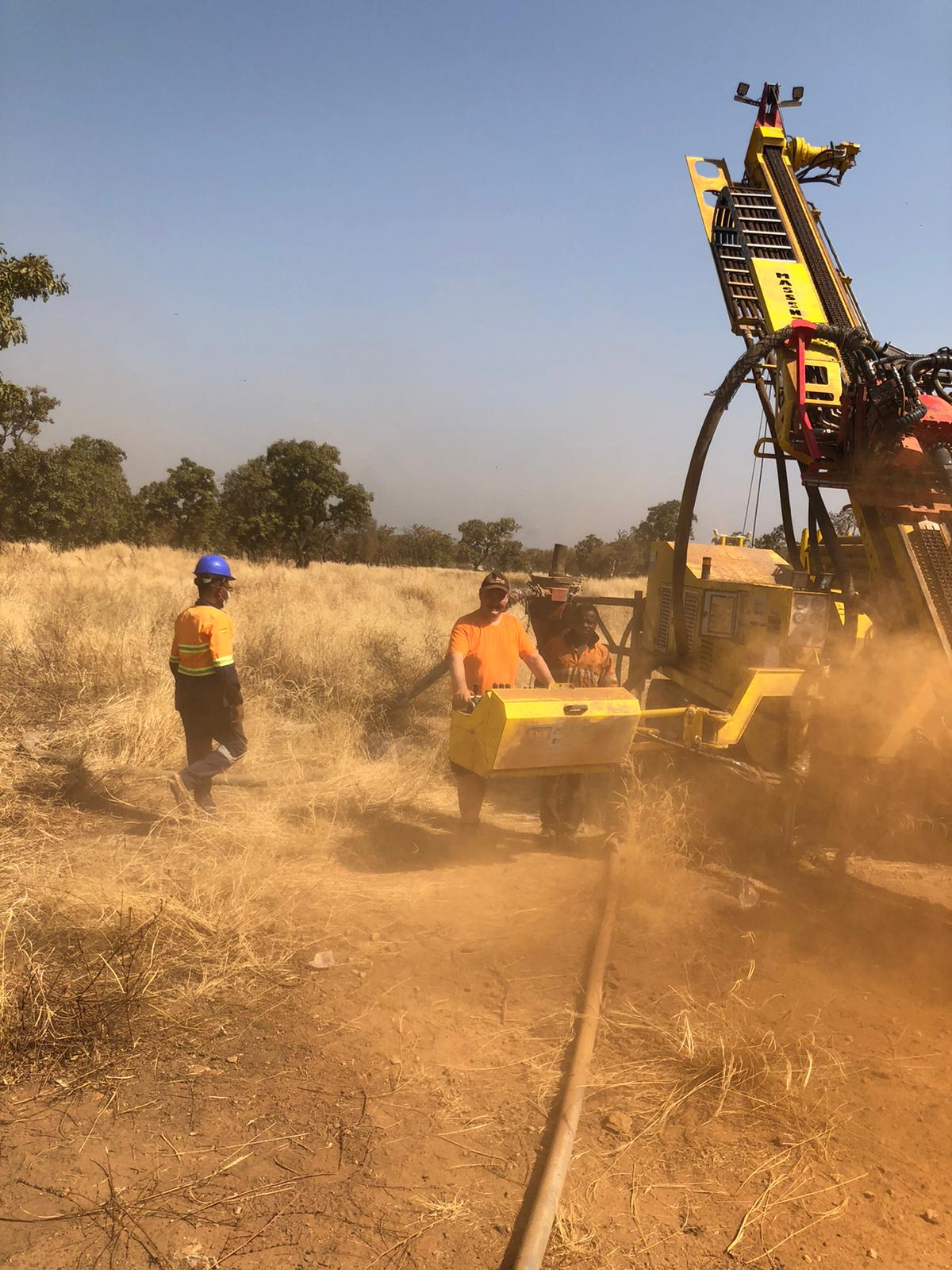

The cuttings comes out from inside the rods and flows into a particular kit mounted on the head (Metzke Kit) which convey inside a cyclone to separate the cuttings
Phase 2
The geologist analyzes the cuttings
Phase 3
If the material is found interesting, once the holes are finished, the operators work in the area with the explosive
Phase 4
Once the rock has been demolished they begin to dig with excavators to continue the work autonomously

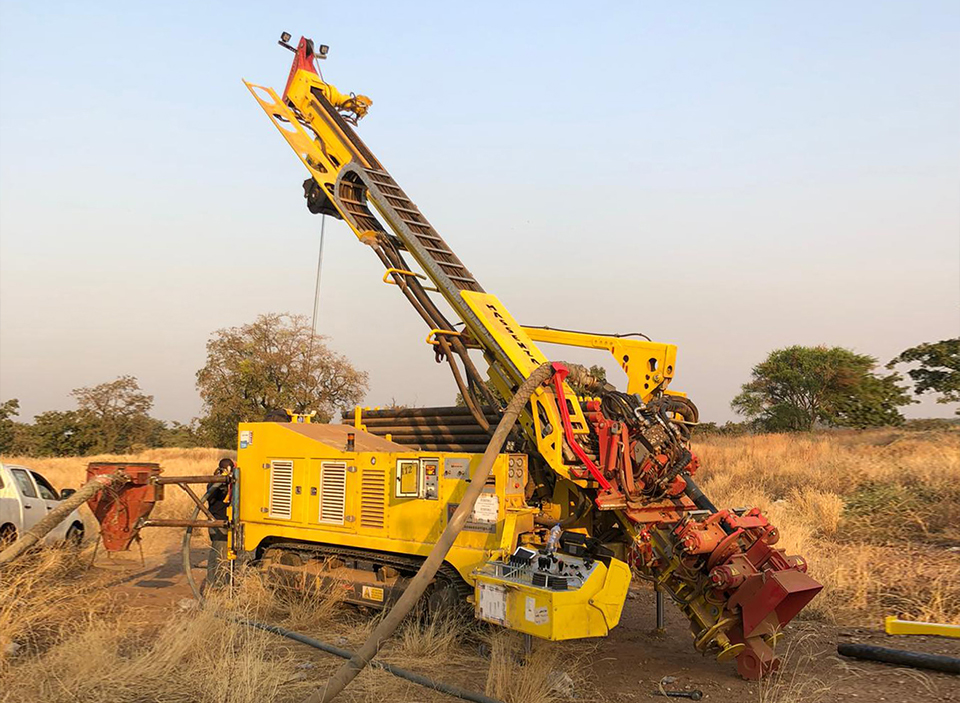

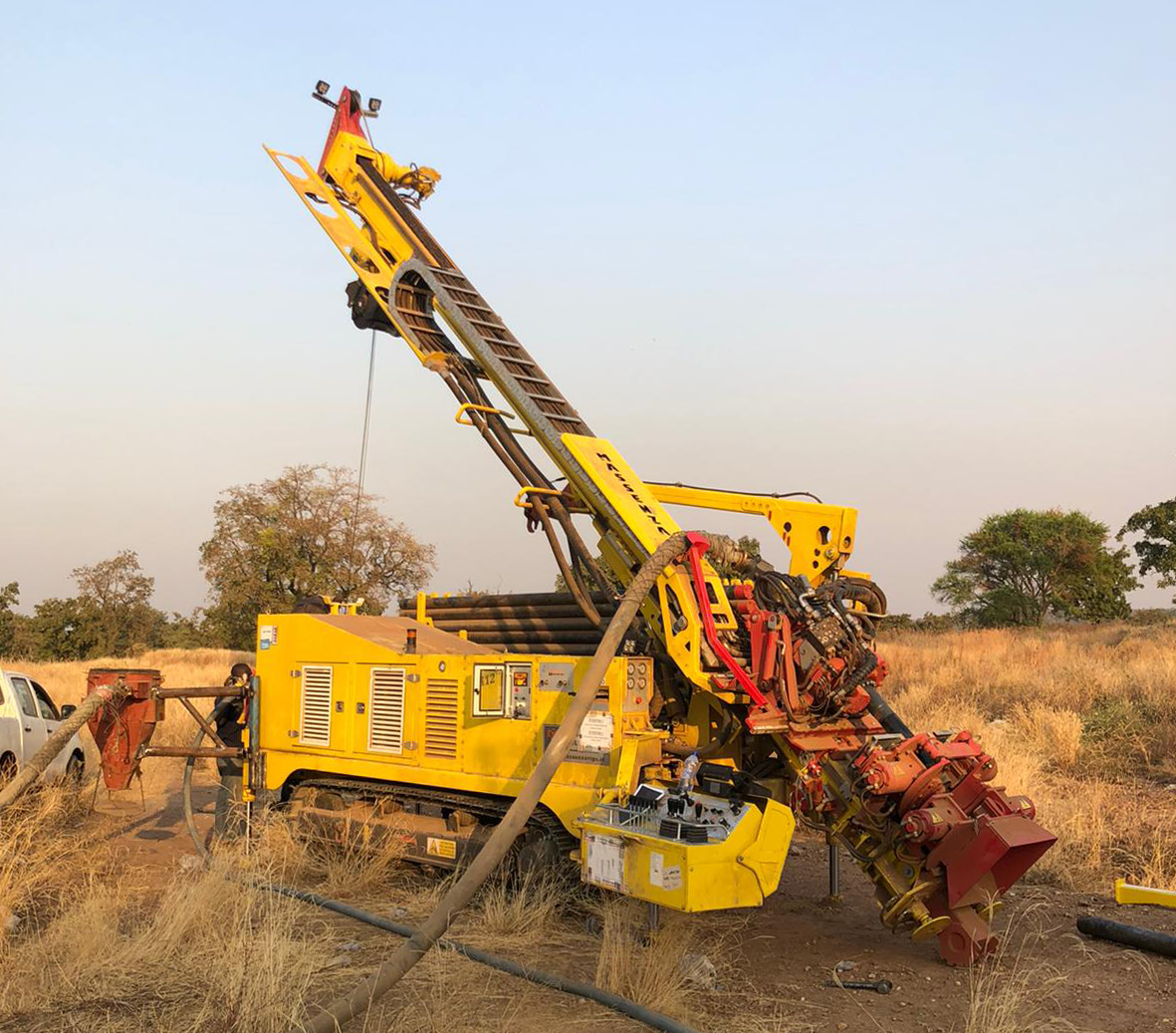

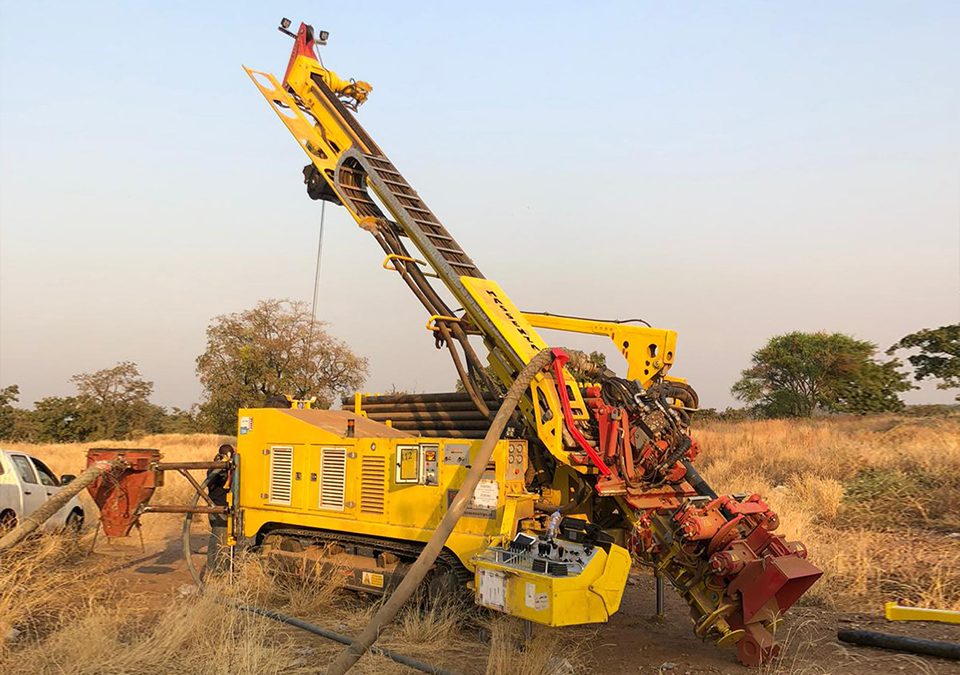

This Innovative and Versatile MI12 for Blast Hole Drilling and Exploration Drilling is mounted on crawler, and is equipped with an automatic drill pipes handling system, triplex pump, foam pump and air lubricator.
Powerful and multipurpose Drilling Rig ideal for a wide range of applications
Equipped with a Eurodrill Rotary Head with maximum torque of 10660 Nm (7862 lb·ft)
Maximum speed of 1000 RPM
The other main features of these MI12s are:
- 22 Tons Capacity Mast with Rotary head stroke for 6m (19,6ft) drill pipes
- Reverse Circulation Conversion Swivel
An innovative solution to easily and quickly switch from RC drilling to wireline drilling and vice versa
- 45° Angle Drilling
Mast anchoring system for safe angle drilling up to 45° Able to work combined with automatic charger arm

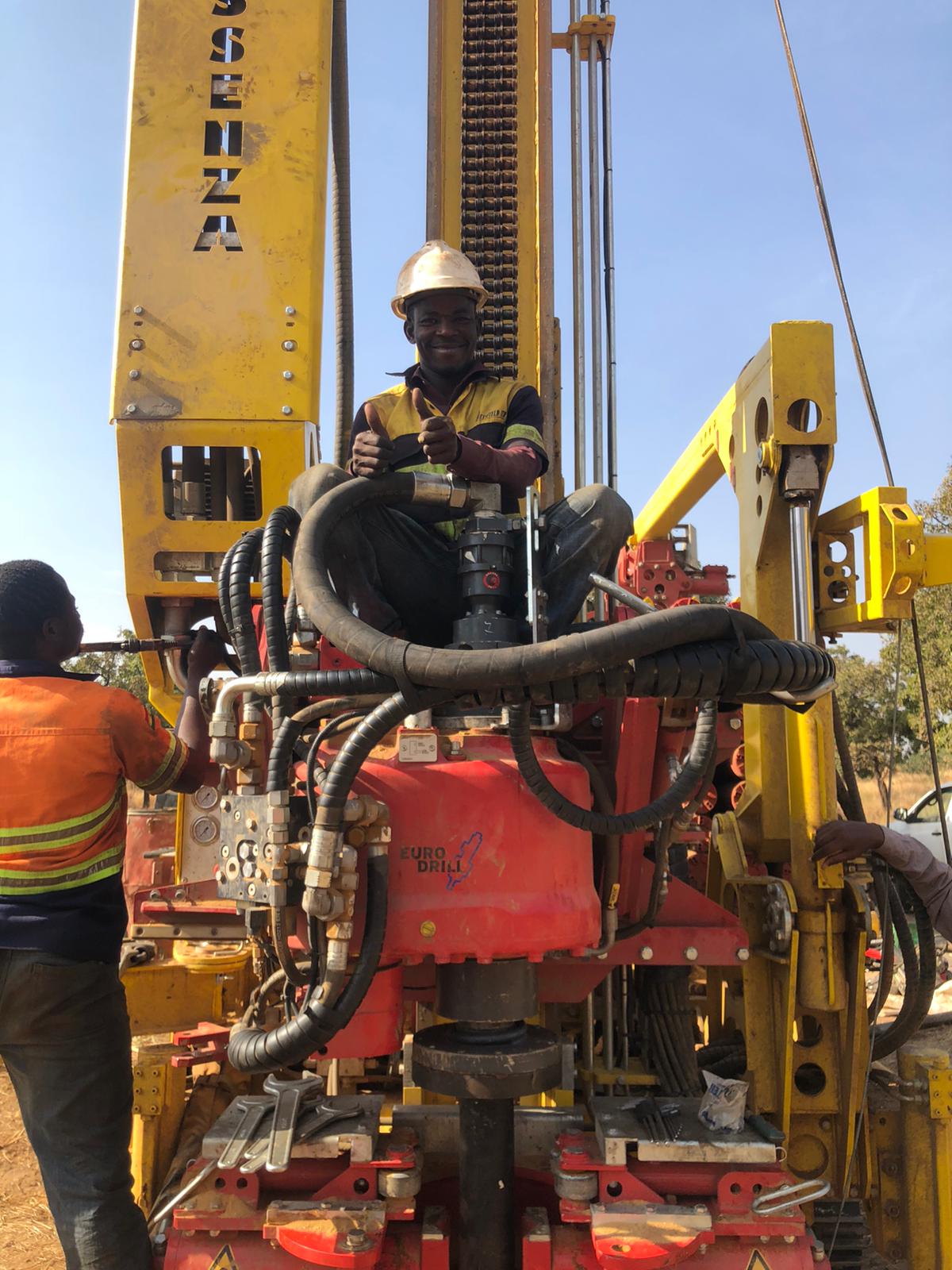

- Eurodrill Rotary Head RH 15X Powerful and multipurpose for a wide range of applications Maximum torque of 10660 Nm (7862lb.ft) maximum speed of 1000 RPM
Metzke Kit to convey deribs inside a cyclone to separate them
DIMENSIONS:
Width: 2514 mm
Length: 10040 mm in transport position
Height: 3356 mm in transport position
Mast Height: 11146 mm in working position
Weight: 16000 kg (without drill pipes)
ACCESSORIES:
John Deere Diesel Engine with maximum power of 186kW (225HP) with sound proof covering

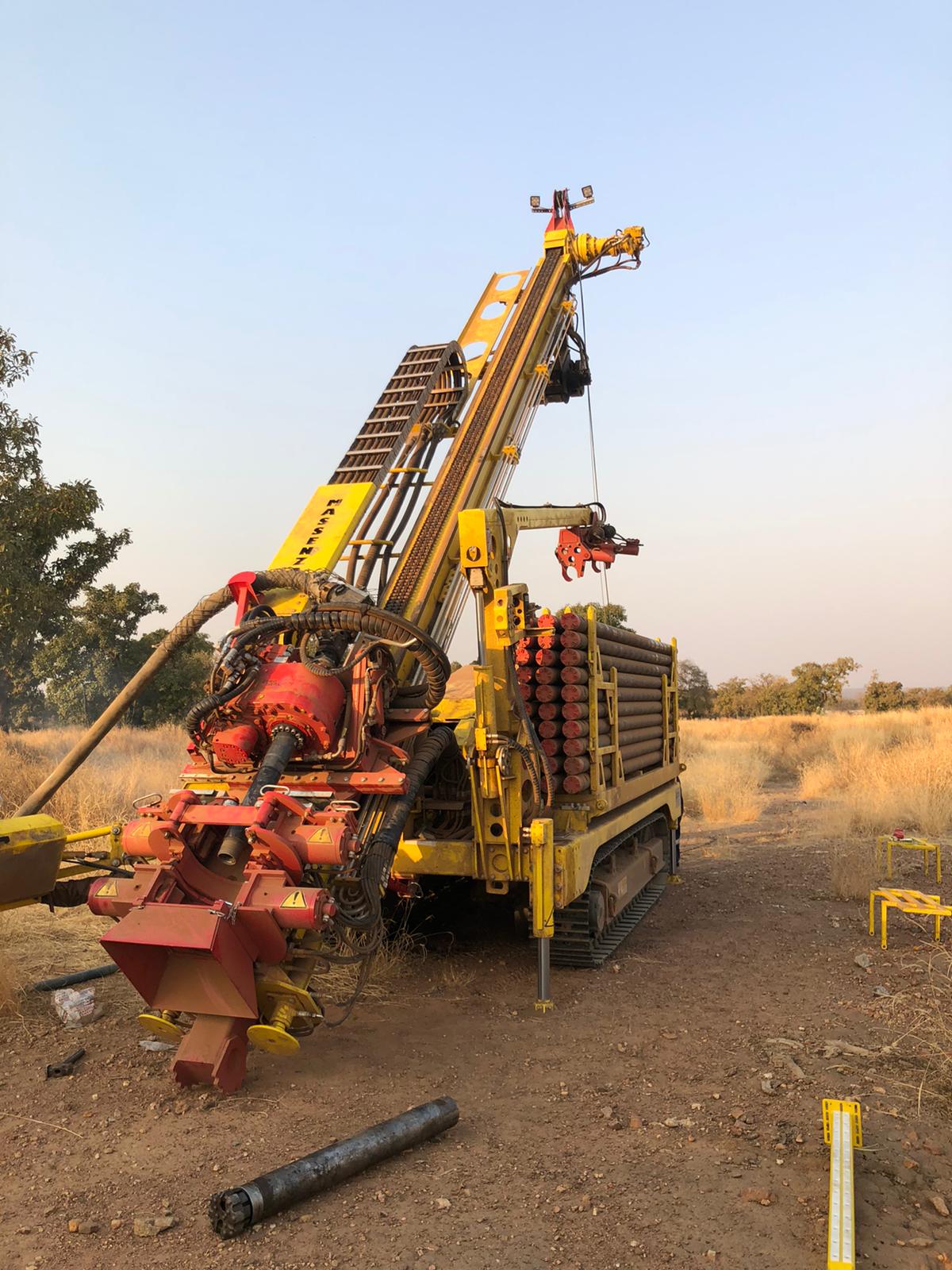

Drill pipe container 30 drill pipes,114mm (41/2") diameter, 4,5m (15ft) long
Total 135m (442ft) on board
Hydraulic control panel on a swivelling arm with adjustable height for perfect visibility Automatic Drill Pipes Charger Arm
For fast and completely automatic operations, with independent radio remote control
