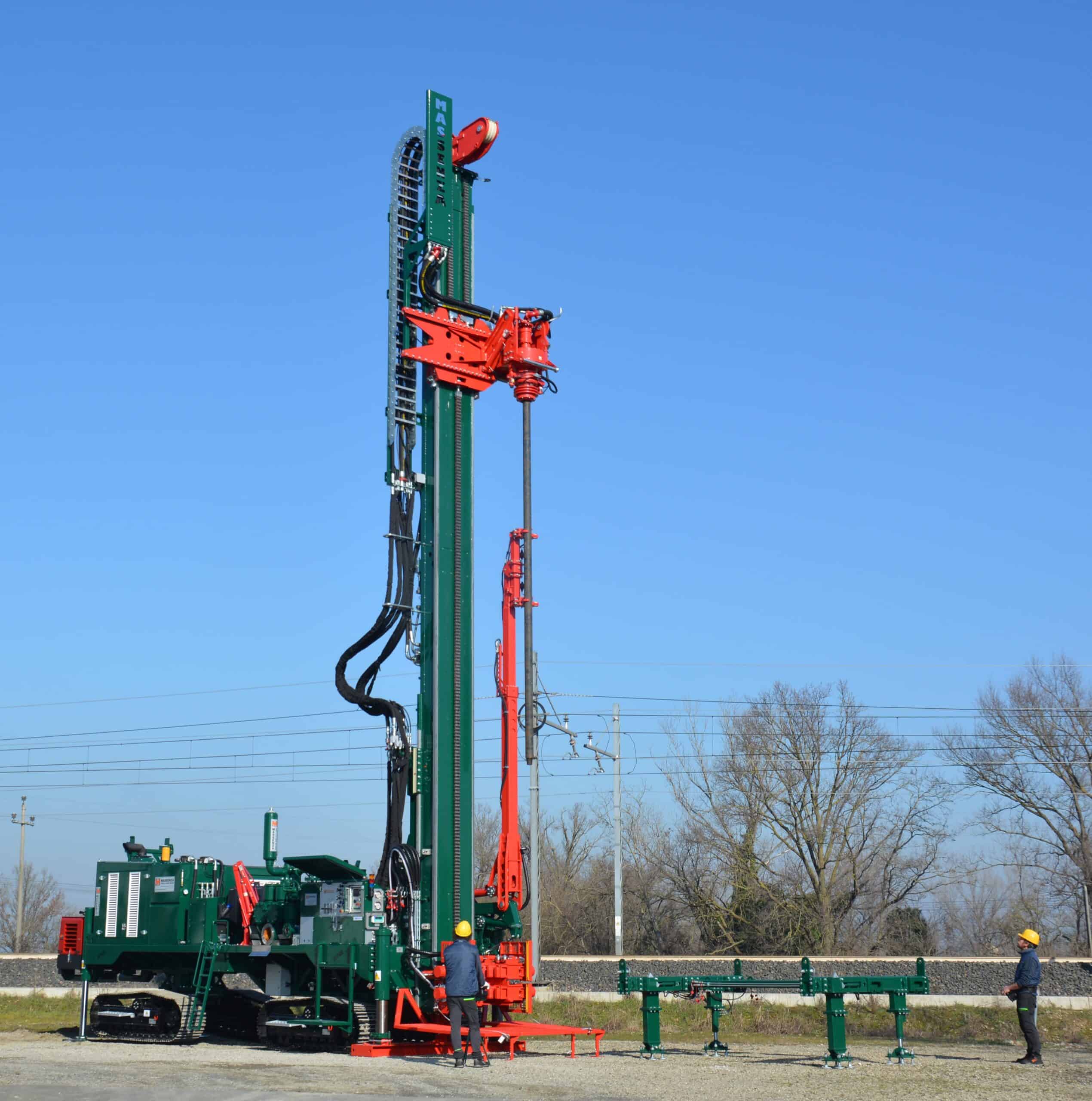

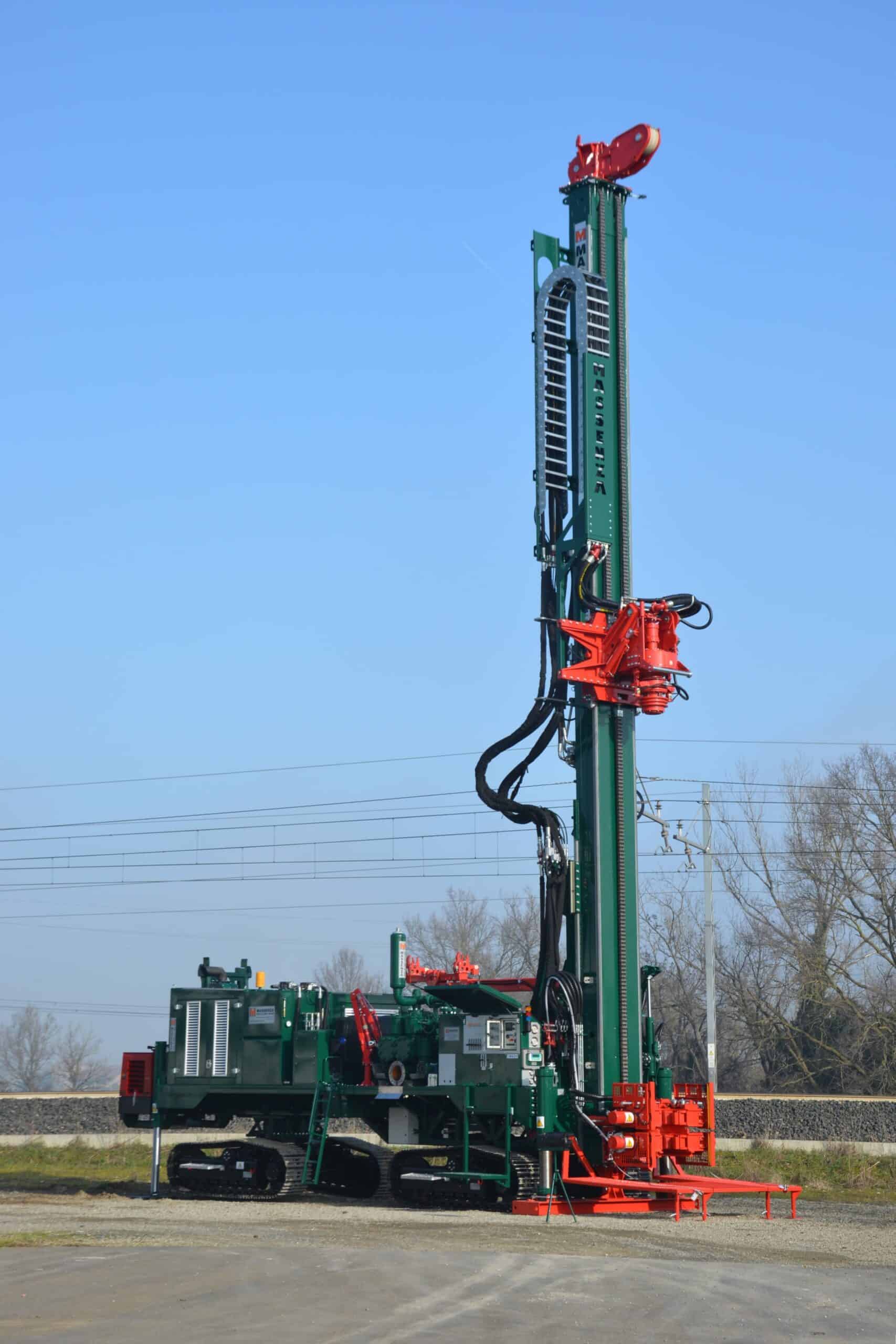

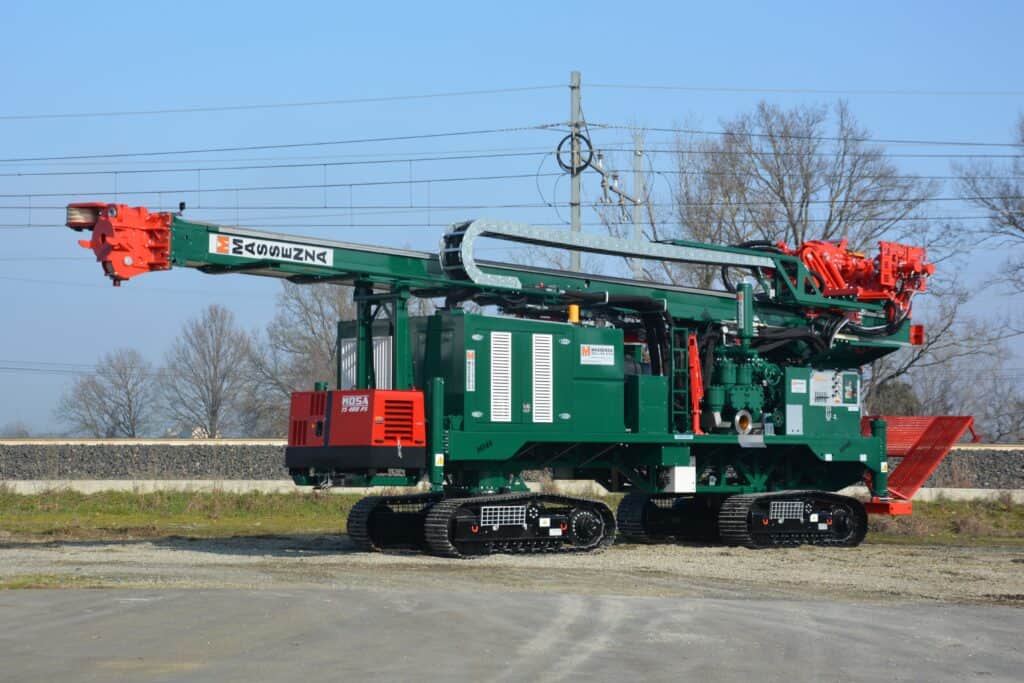

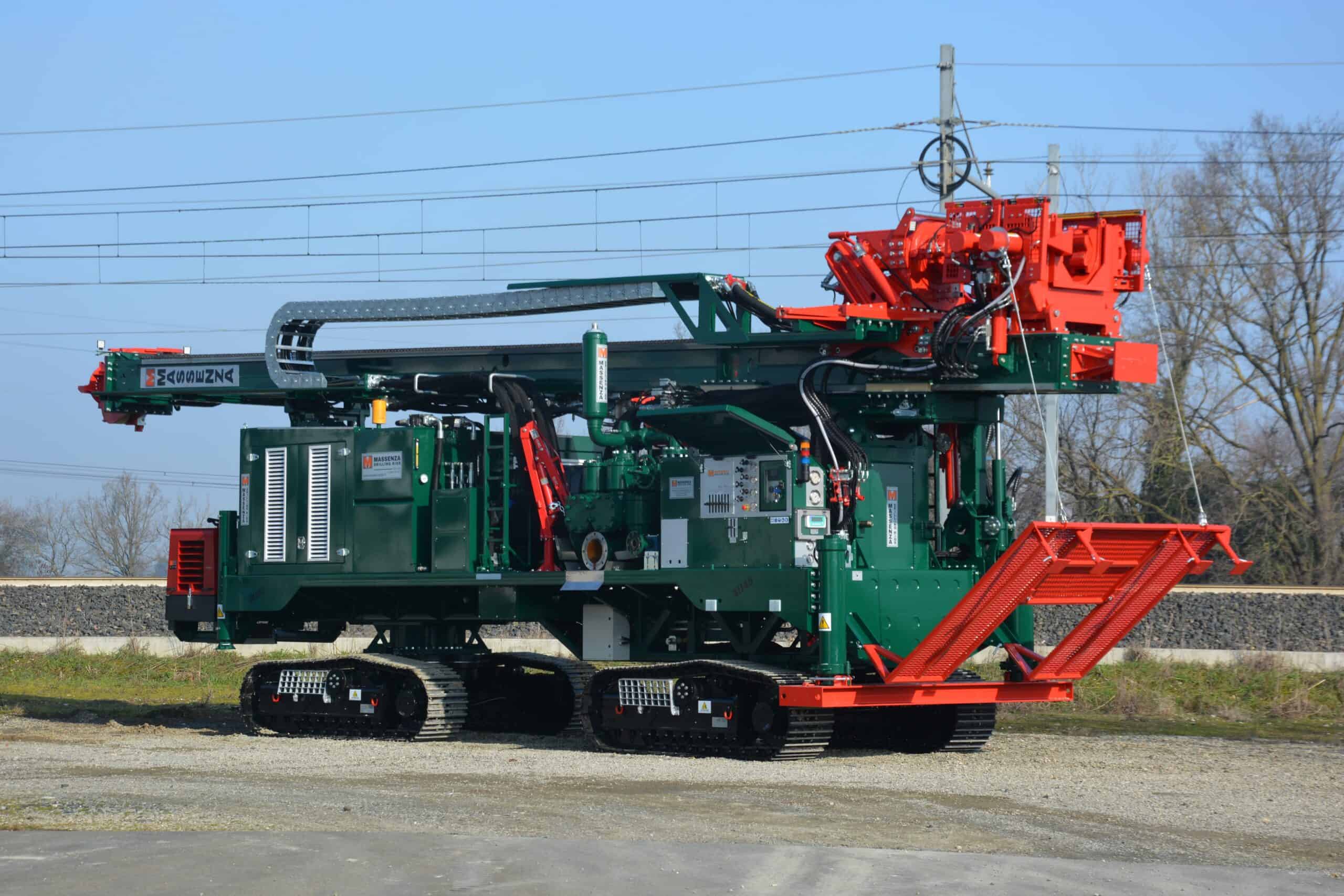

DRILLING RIG Mi45
DESCRIPTION

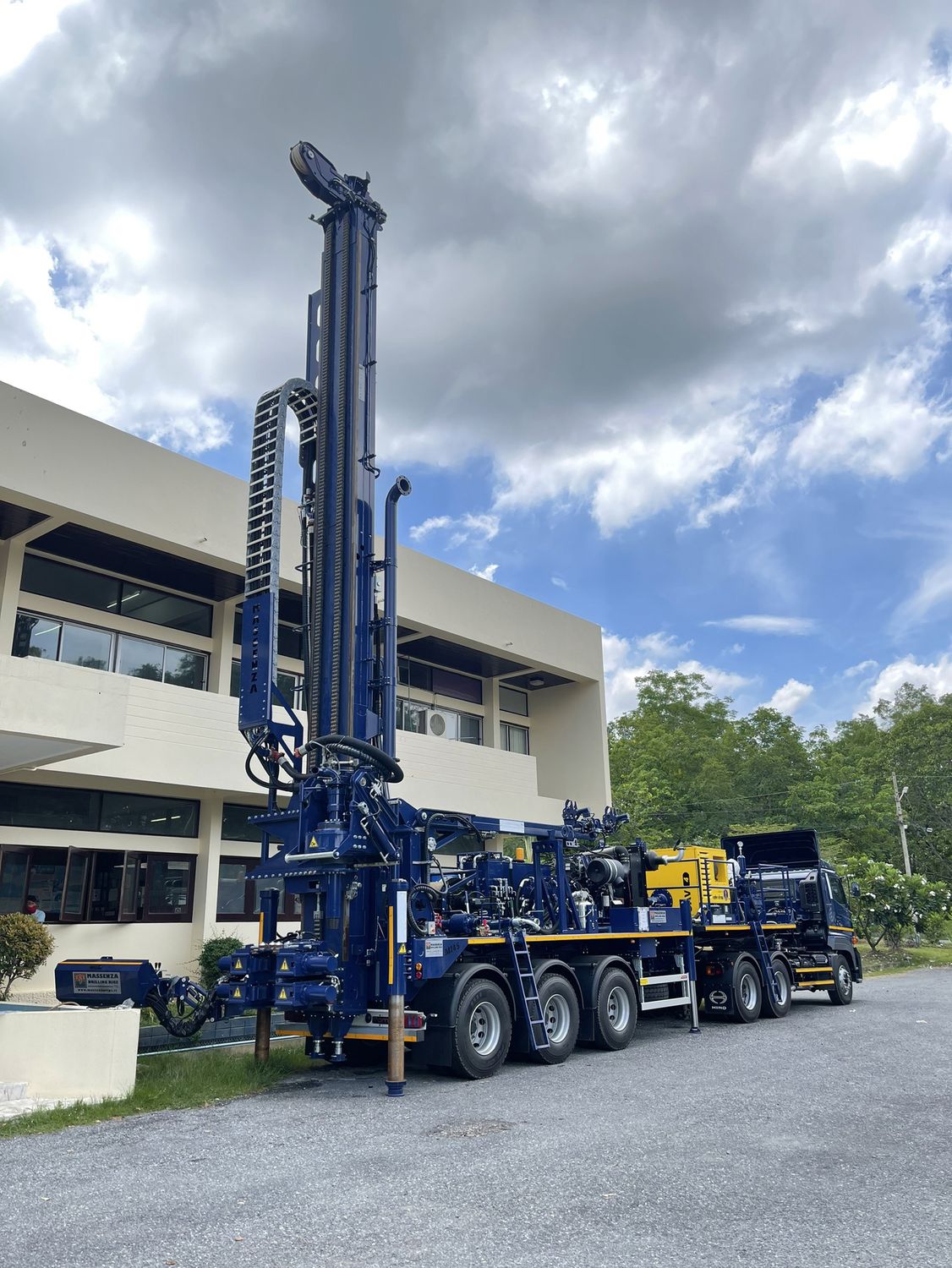

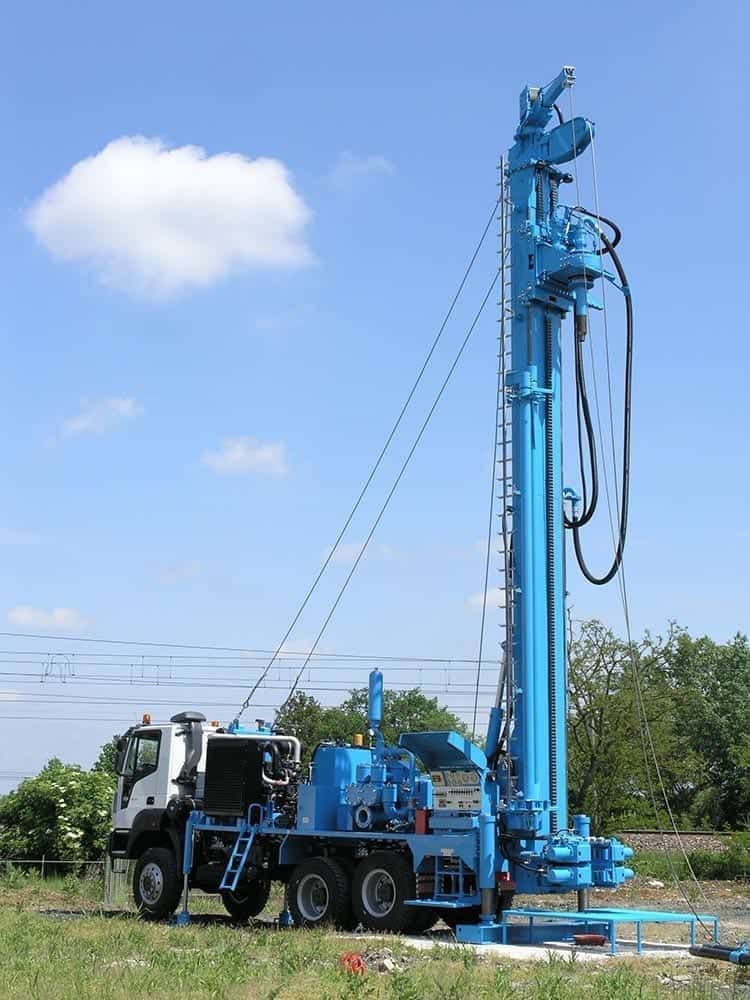

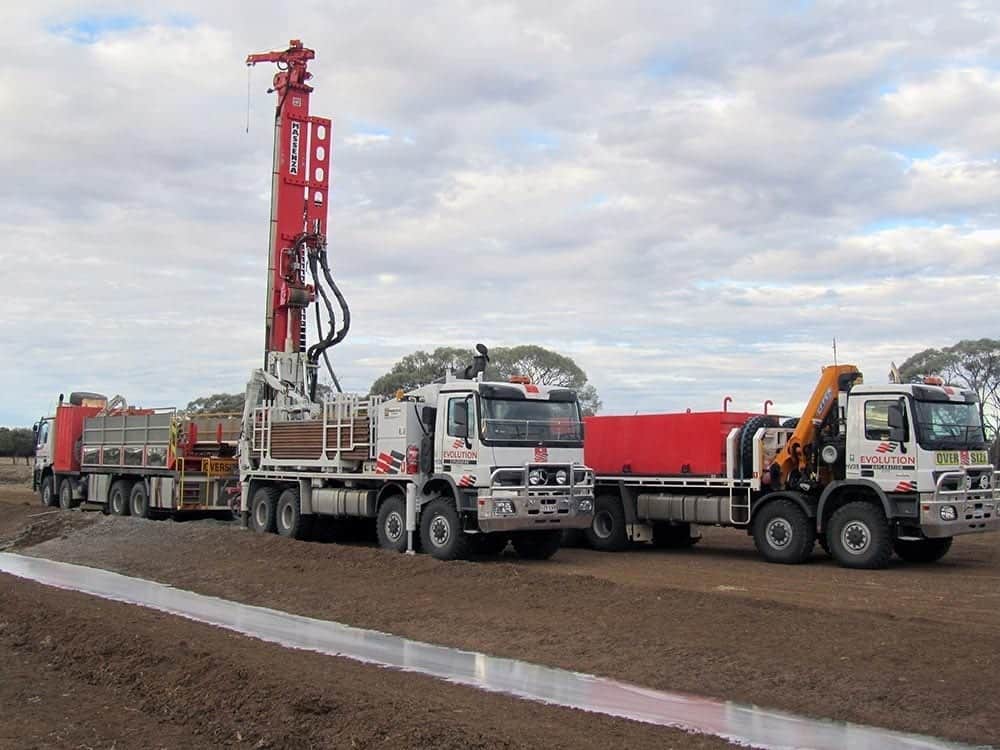

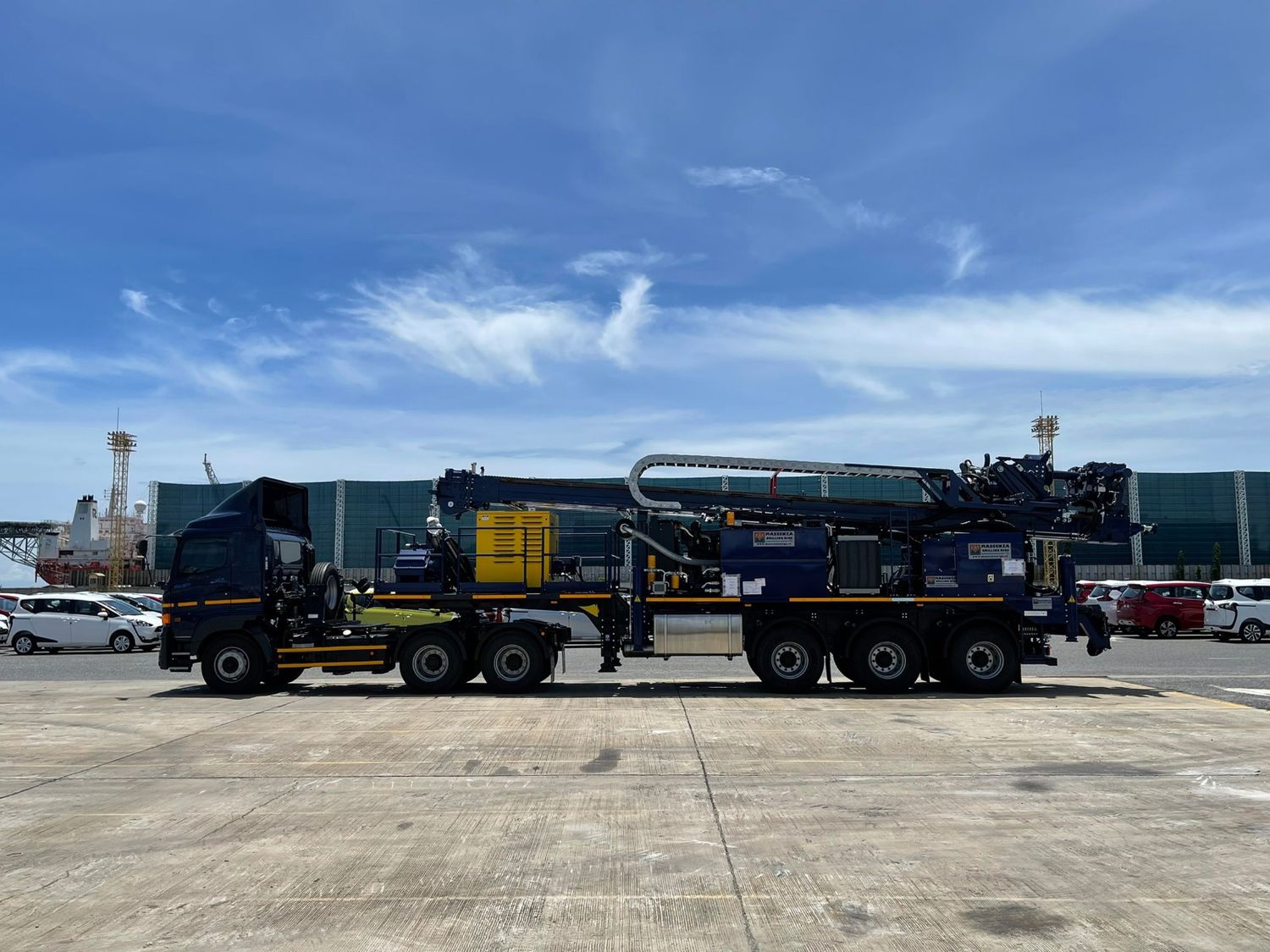

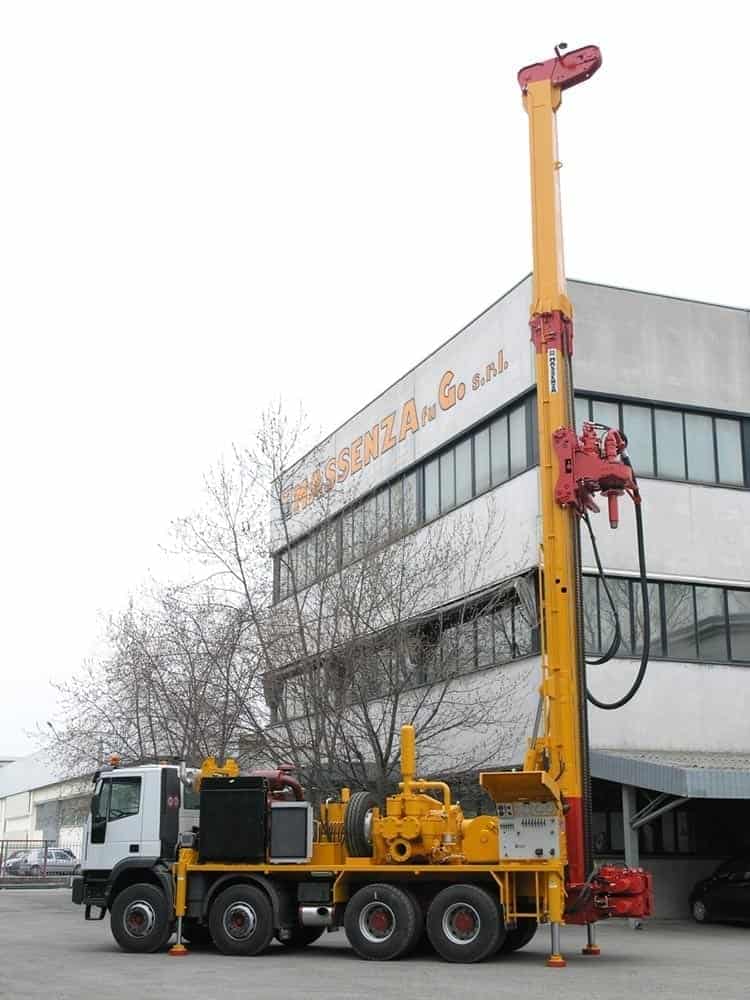

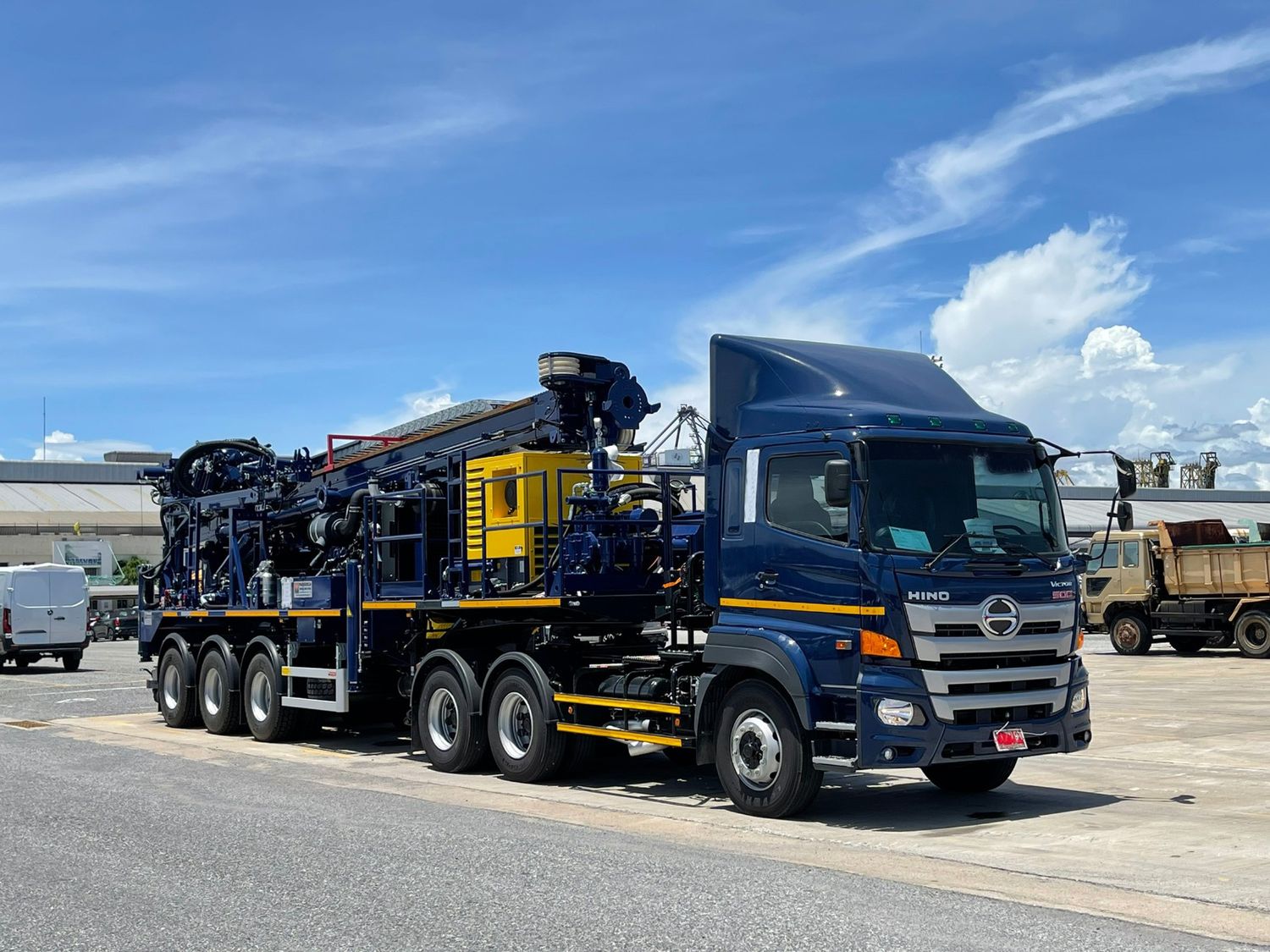

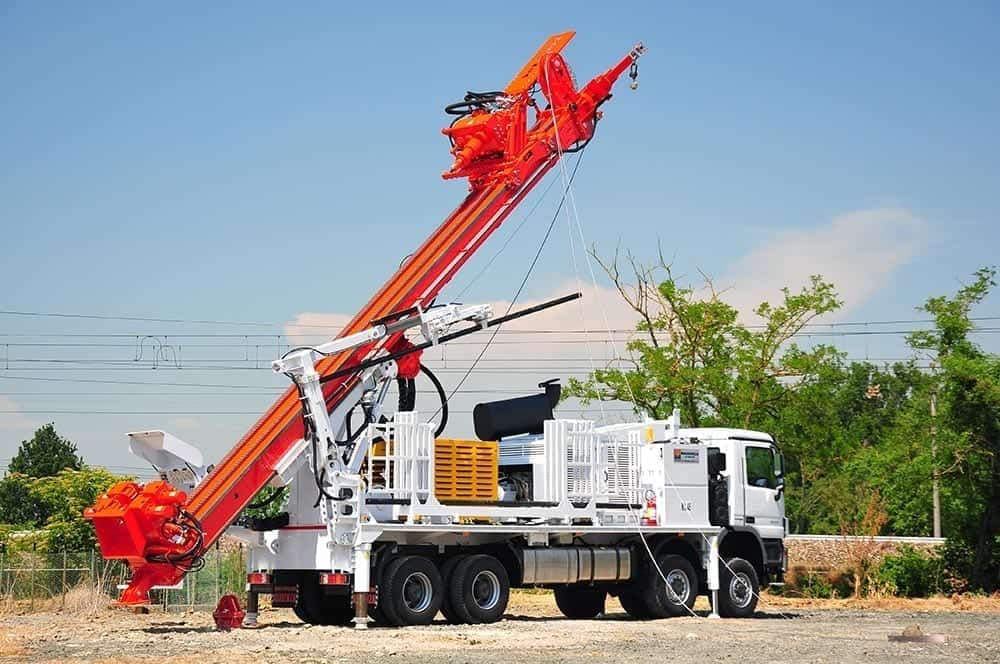

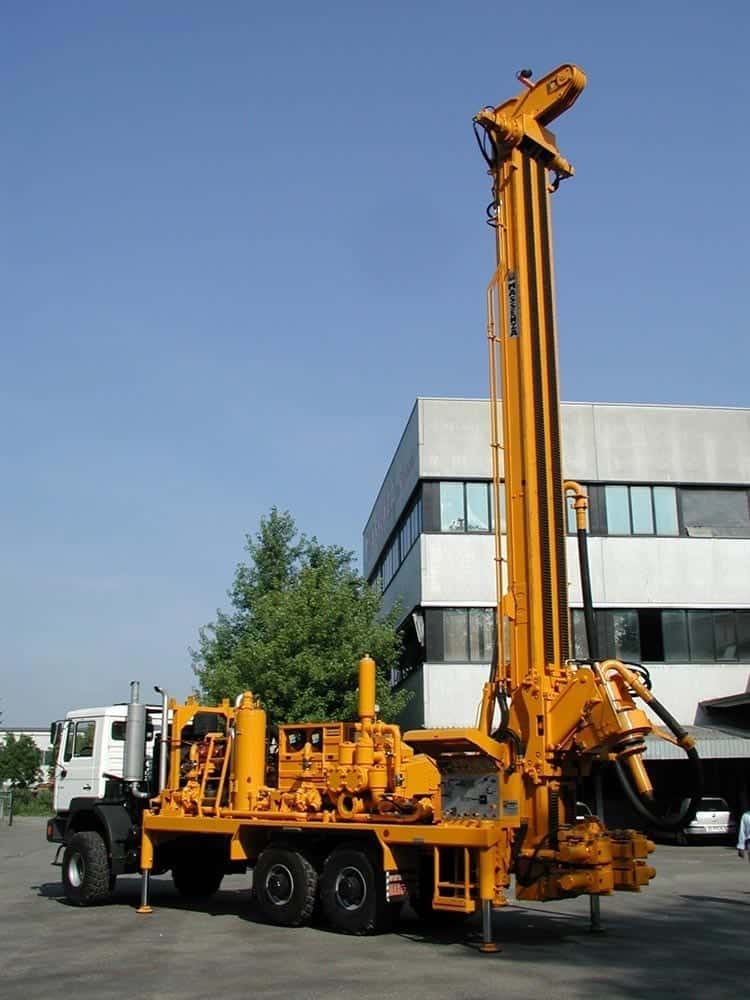

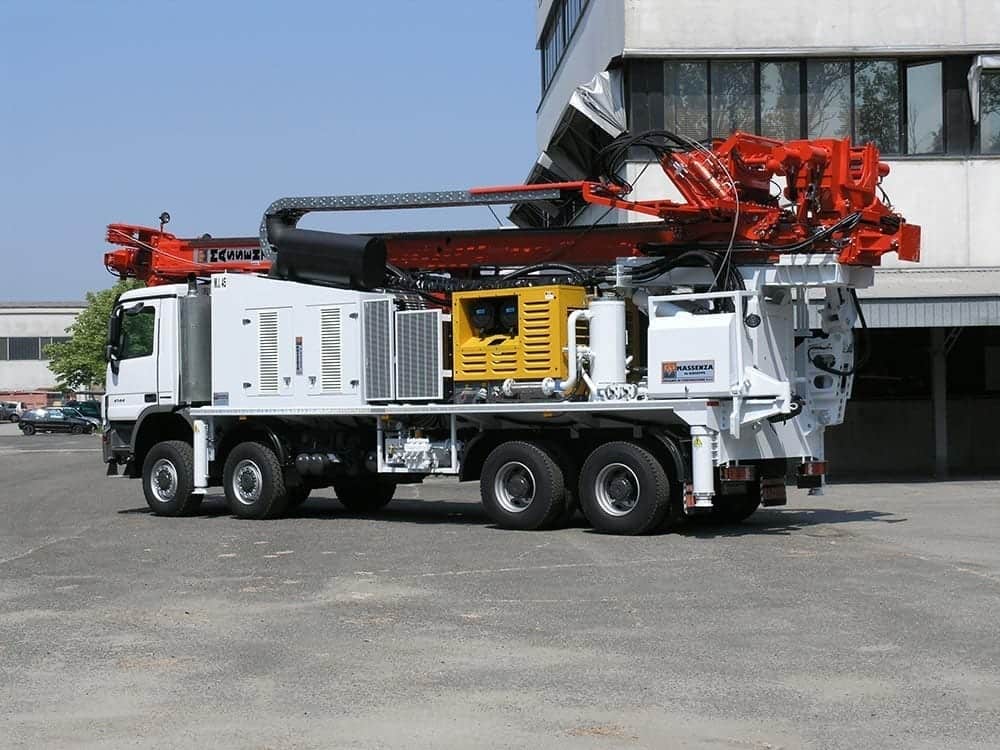

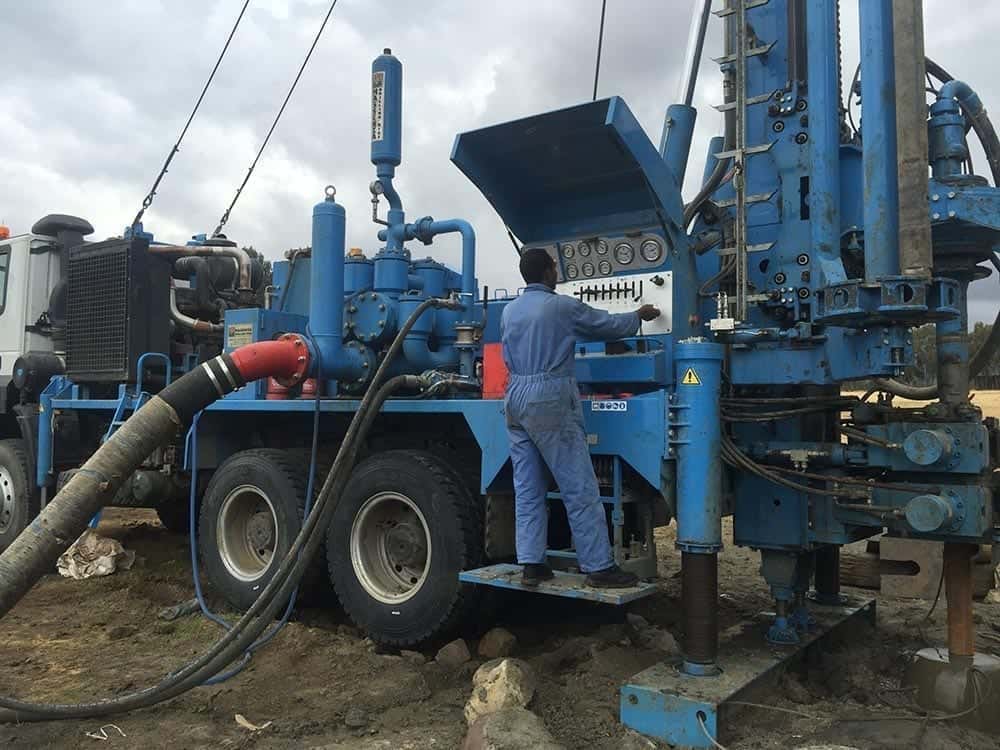

Drilling rig for water wells, mineral exploration, geothermal applications, coring, seismic. It can drill up to 1000 m and it is possible to mount a mud pump or a high capacity compressor depending on the various needs. The rig can be mounted on truck or on semi-trailer (in this case it is possible to handle 9 m drill pipes). Its robust construction does not prejudice its versatility. The rig can be used with all the main drilling methods: direct and reverse circulation by mud and by down the hole hammer. It can be operated remotely.| WORK METHODS |
|---|
| -Rotation with direct circulation -Nucleus destruction with bleeding by water, mud and foam -Rotation with down the hole hammer -Reverse circulation -Coring |
| POWER PACK |
| Engine Power from 360 Hp (265 kW) to 831 Hp (620 kW) |
| FUEL TANK |
| Capacity from 300 litri (79 gal) to 600 litri (132 gal) |
| SLIDING MAST(OPTIONAL) |
| stoke 2,250 mm (7 ft 5”) |
| MAST |
|---|
| Maximum stroke of rotary head 10.6 m (34 ft 9”) Maximum pull up 45,000 daN (101,160 lbf) – pull down 21,000 daN (47,210 lbf) |
| ROTARY HEAD |
| Maximum torque 35,380 Nm (26,094 lbf•ft) Maximum speed 1,200 Rpm |
| WINCH |
| Standard: Maximum line pull 10,000 daN (22,045 lbf) Optional: Maximum line pull 15,300 daN (34,396 lbf) Wire-line: Maximum line pull 1,300 daN (2,922 lbf) – 3,500 m (11,483 ft) of rope– 185 m/min (607 ft/min) |

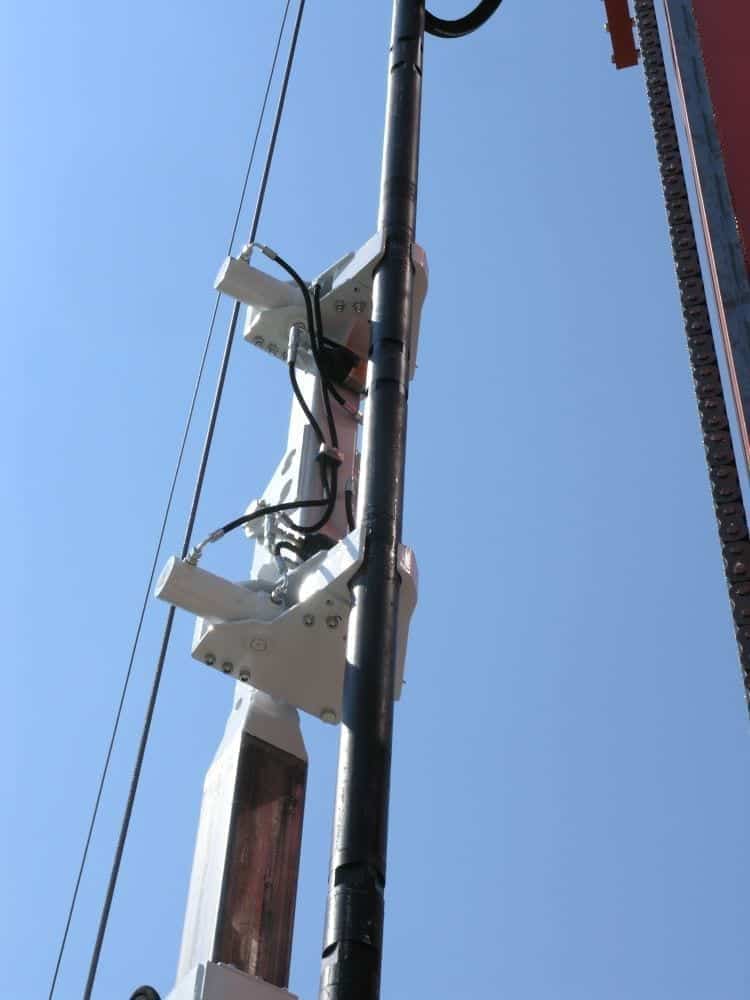

| DOUBLE HYDRAULIC CLAMP |
| Model MS620: Maximum passage 620 mm (24.5”) |
DO YOU NEED MORE INFORMATION
ABOUT THE Mi45?
Video
MASSENZA M.i.45 - Core drilling up to 2600 m
The M.I.45 Hydraulic Drilling Rig is designed for mineral research using rods model NQ, HQ e PQ. It can reach very high depth (up to 2620 meters using HQ rods system).
