DRILLING RIG Mi28
DESCRIPTION

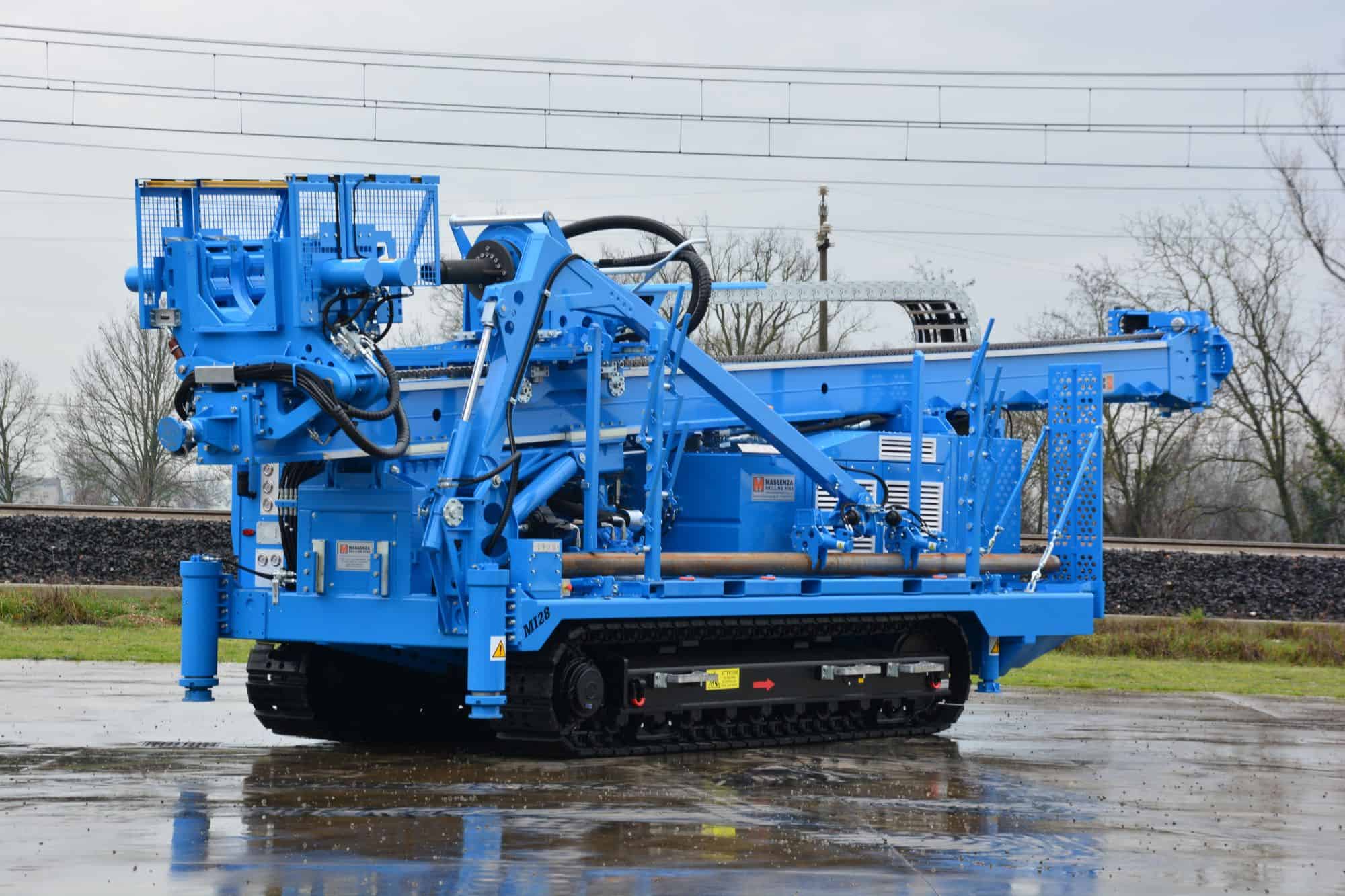

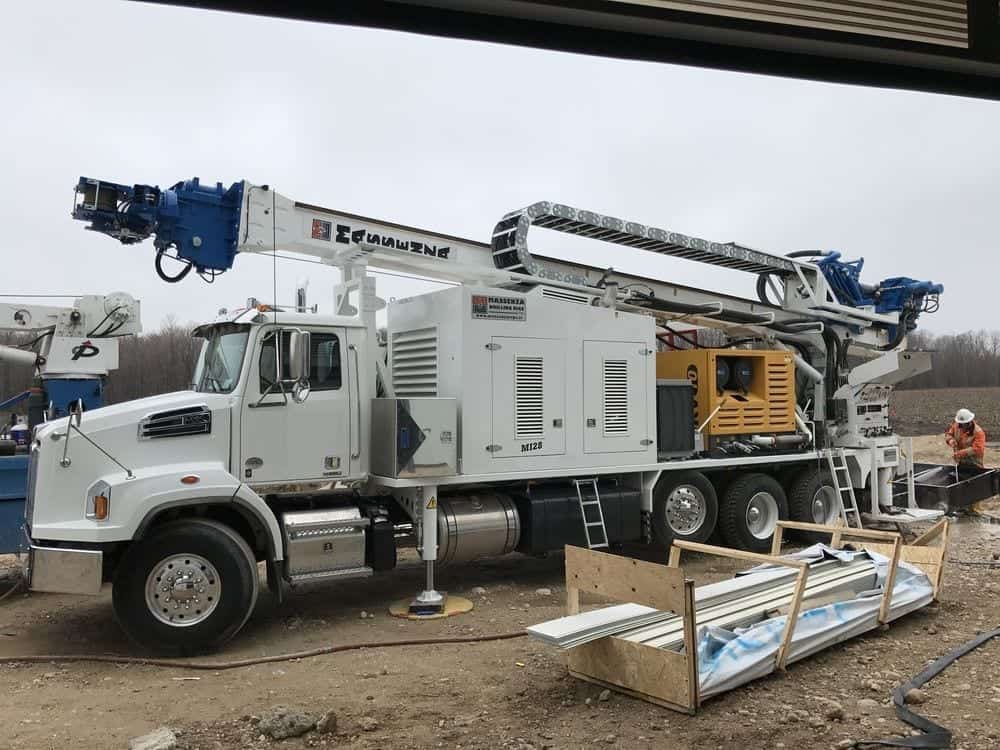

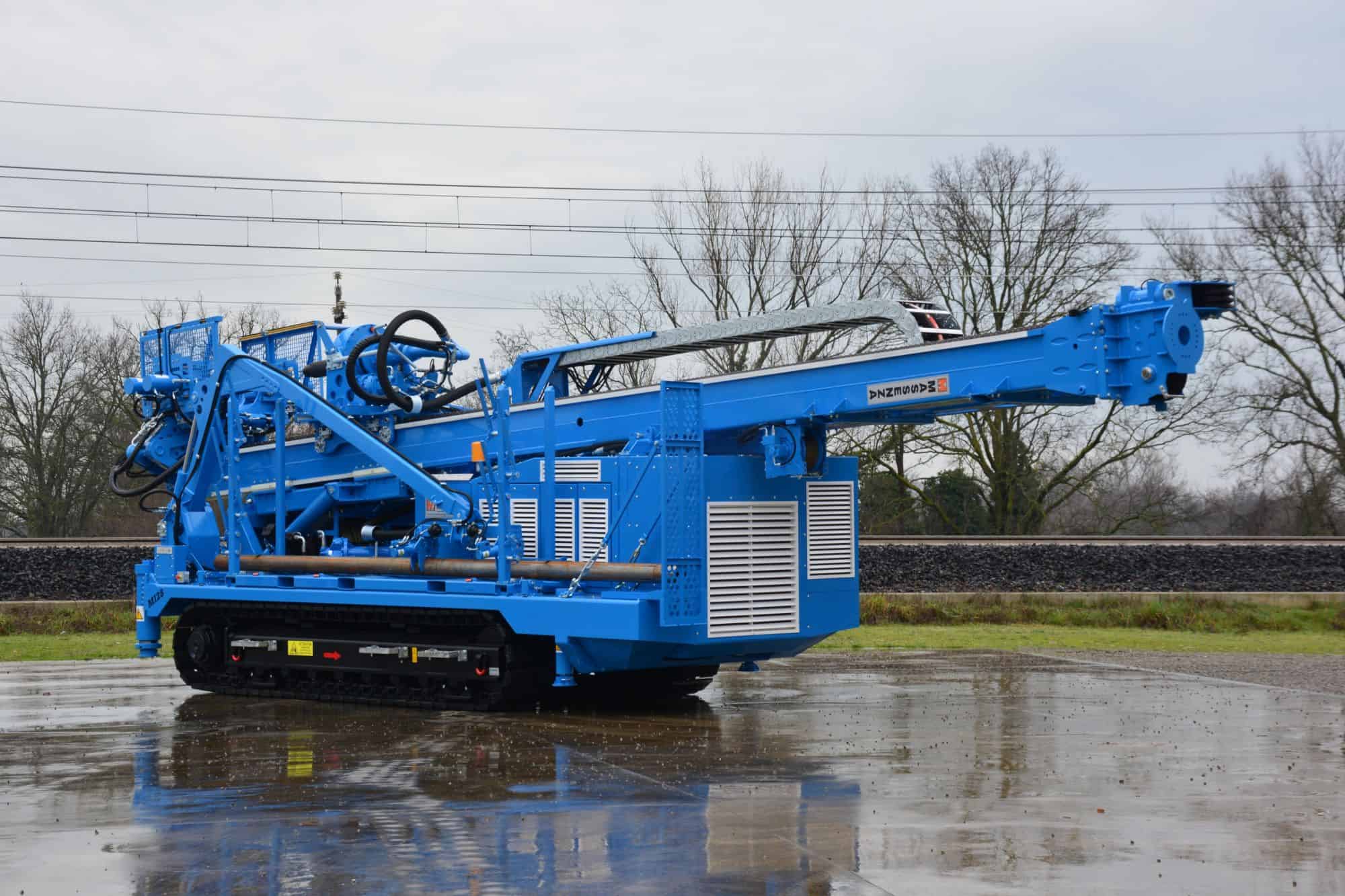

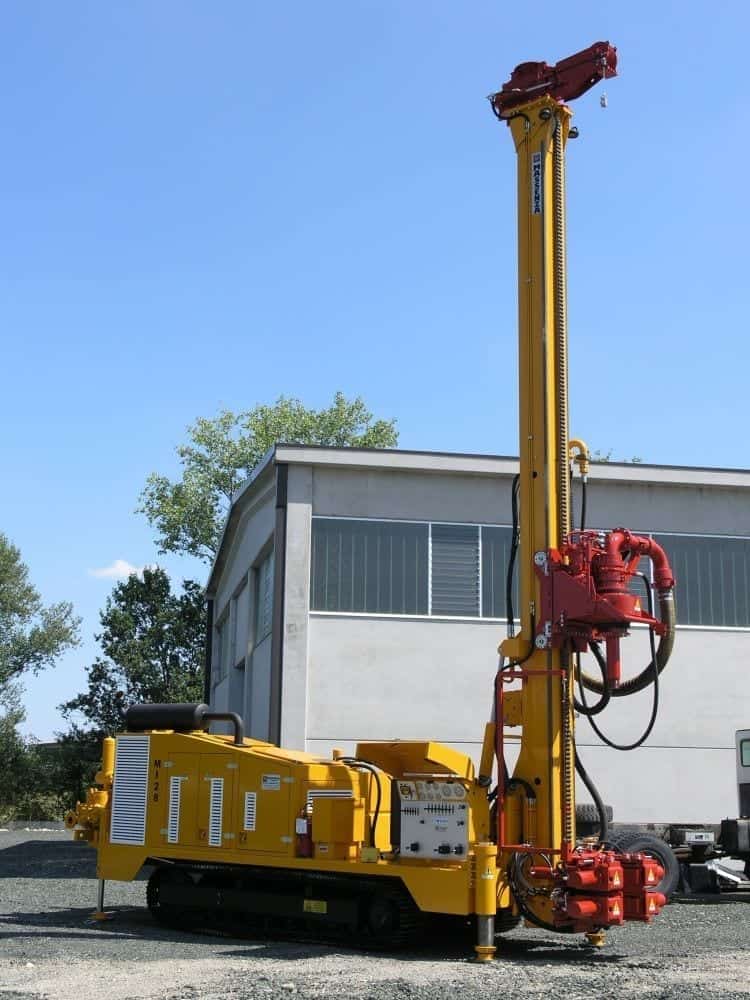

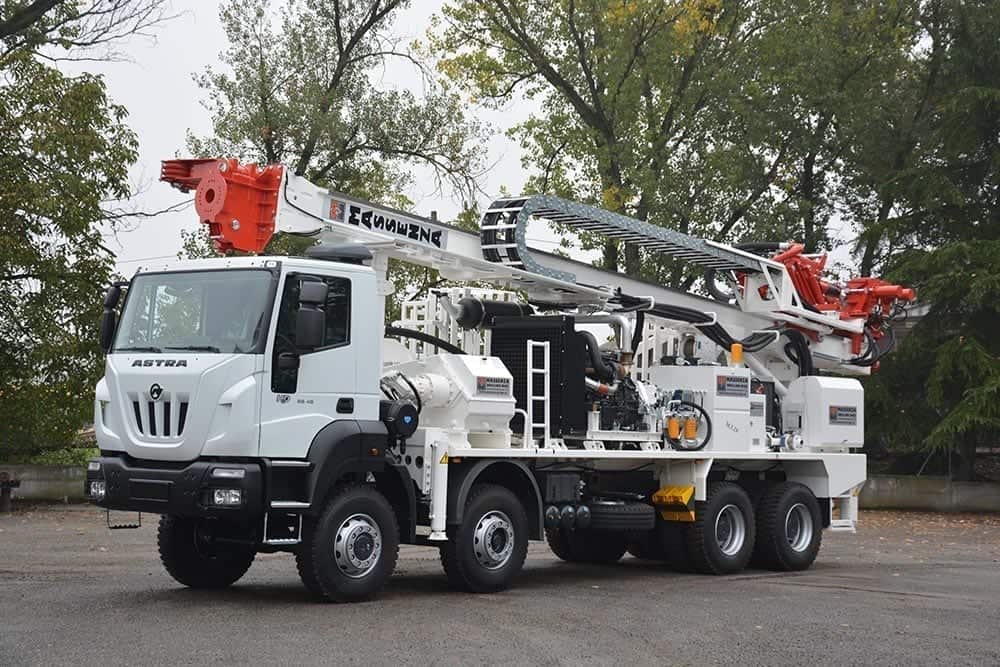

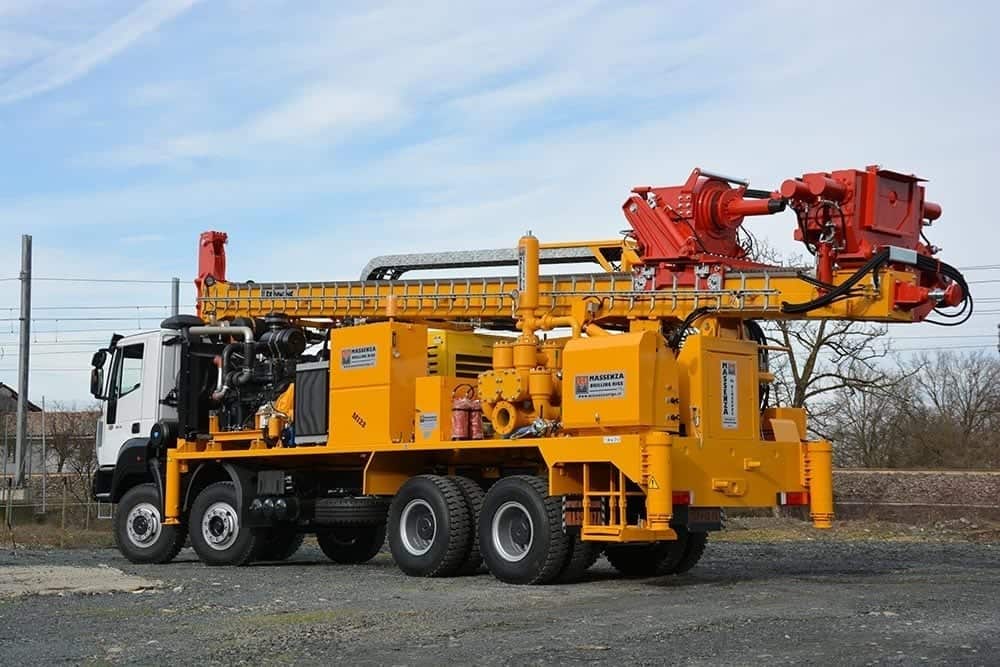

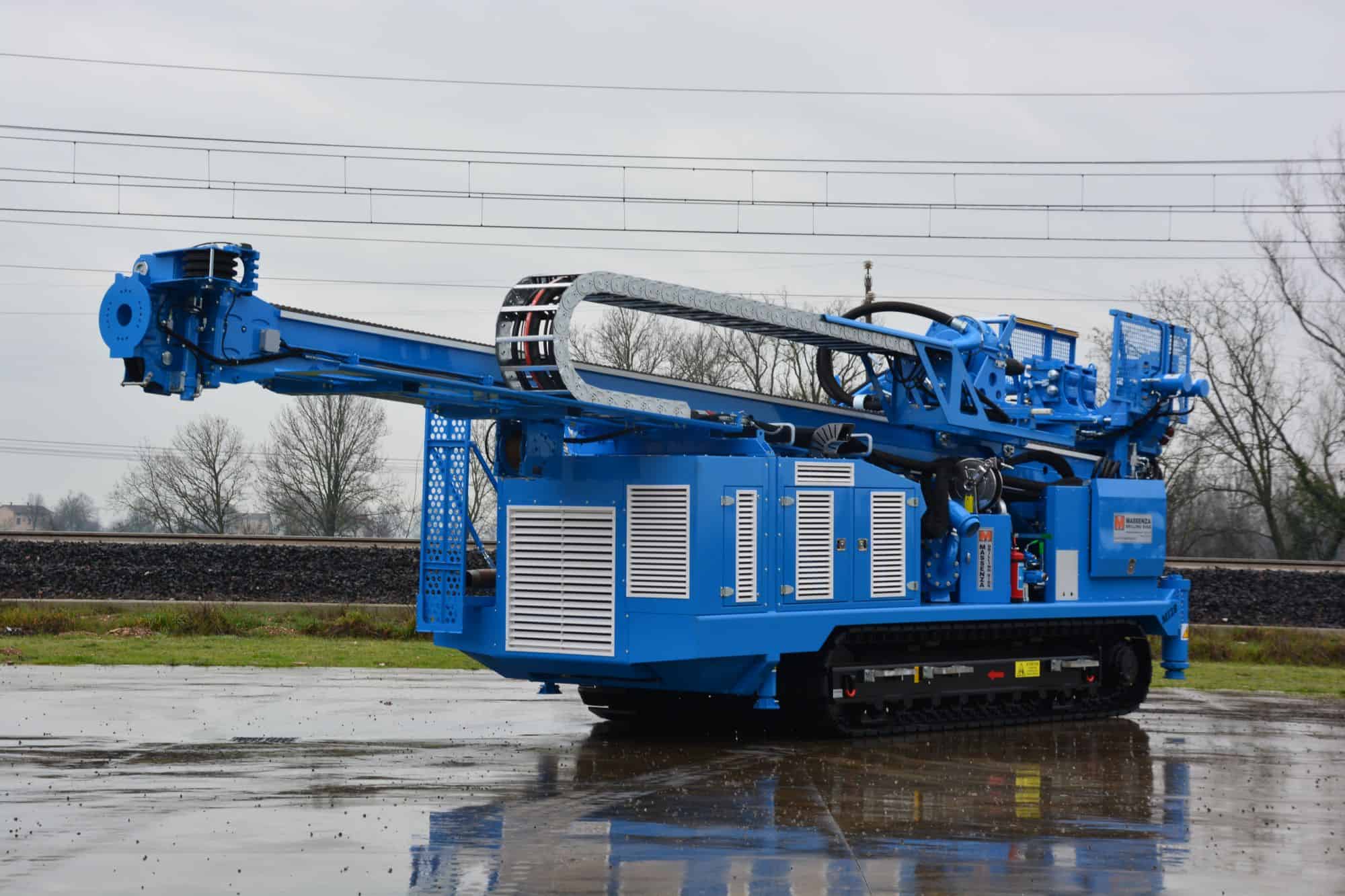

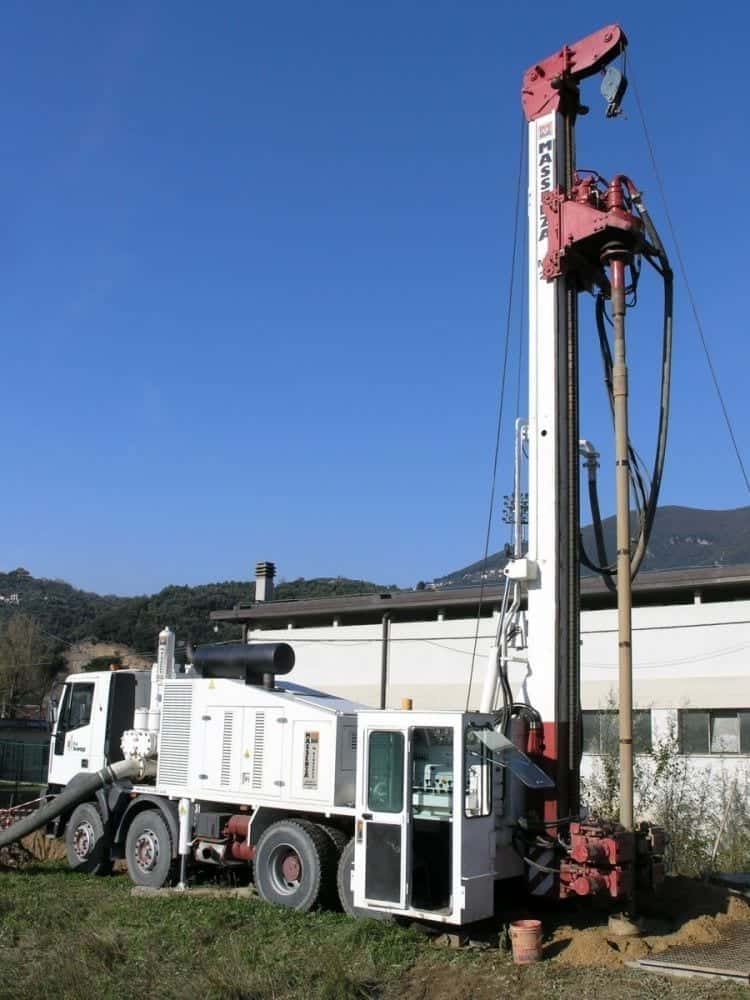

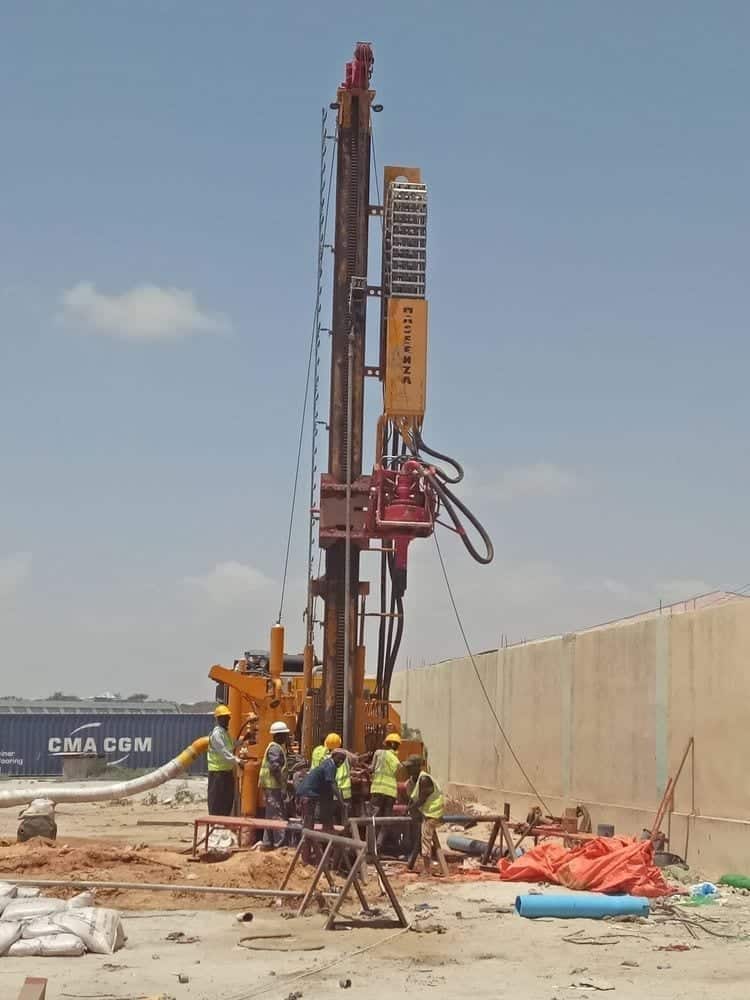

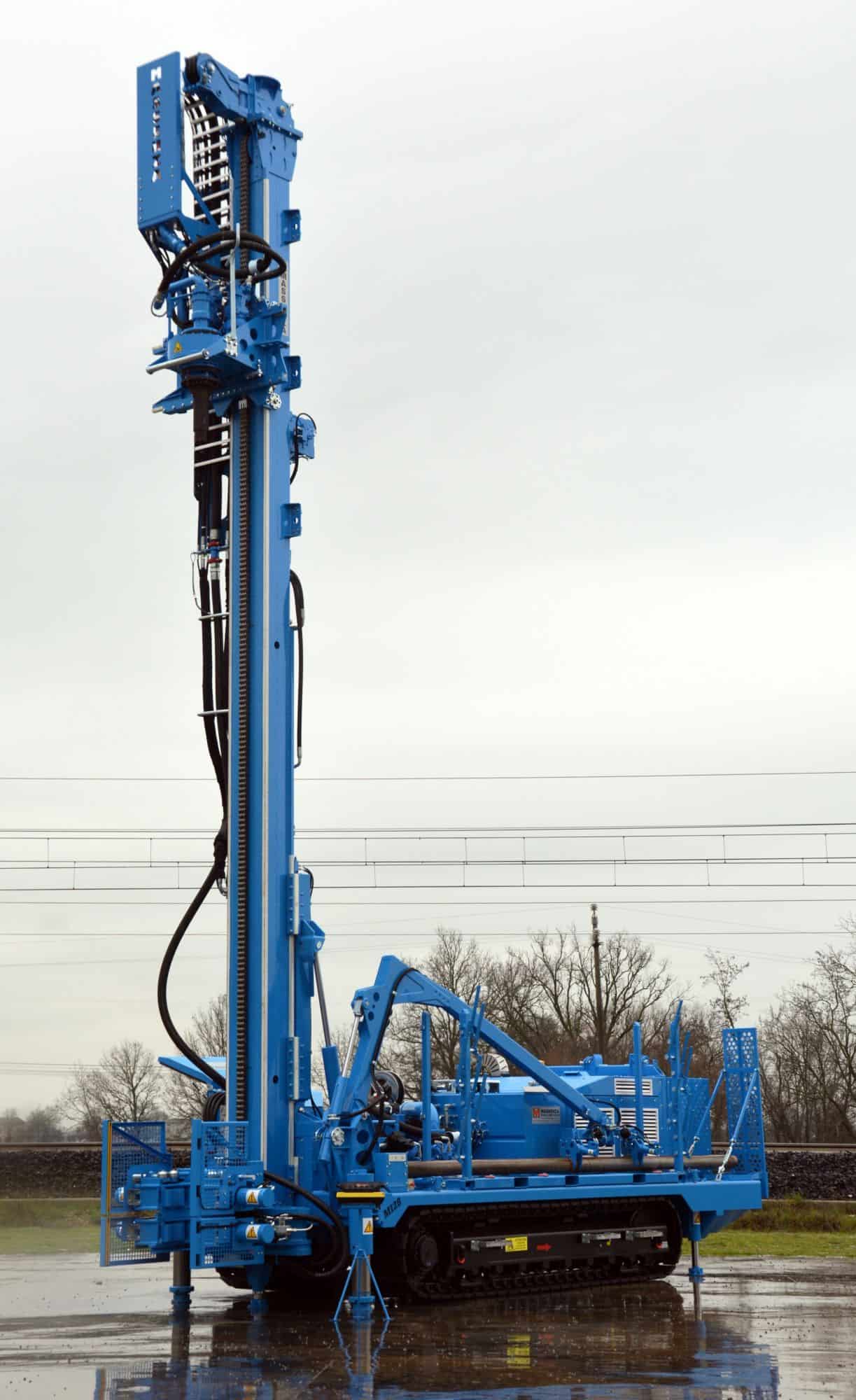

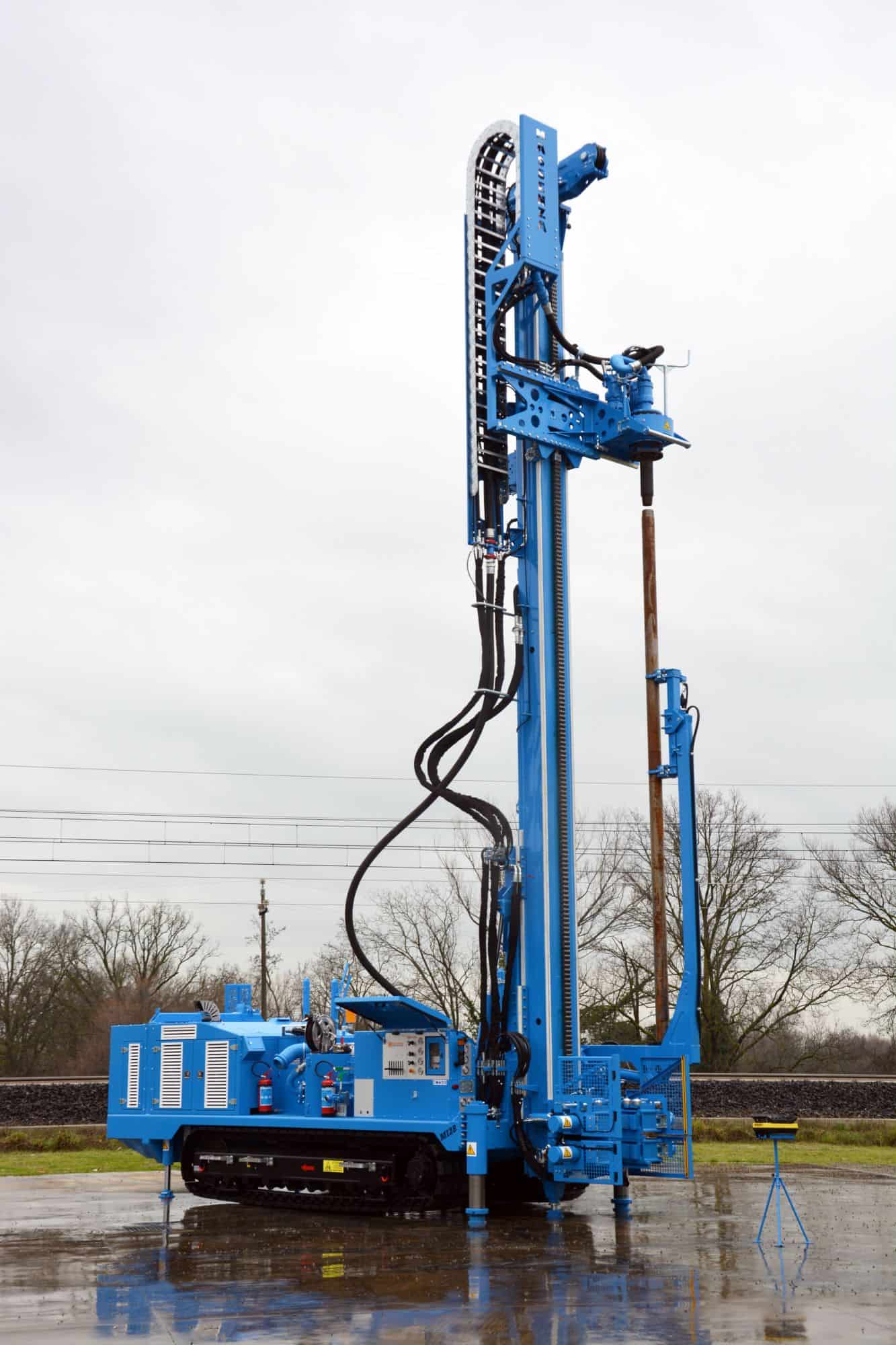

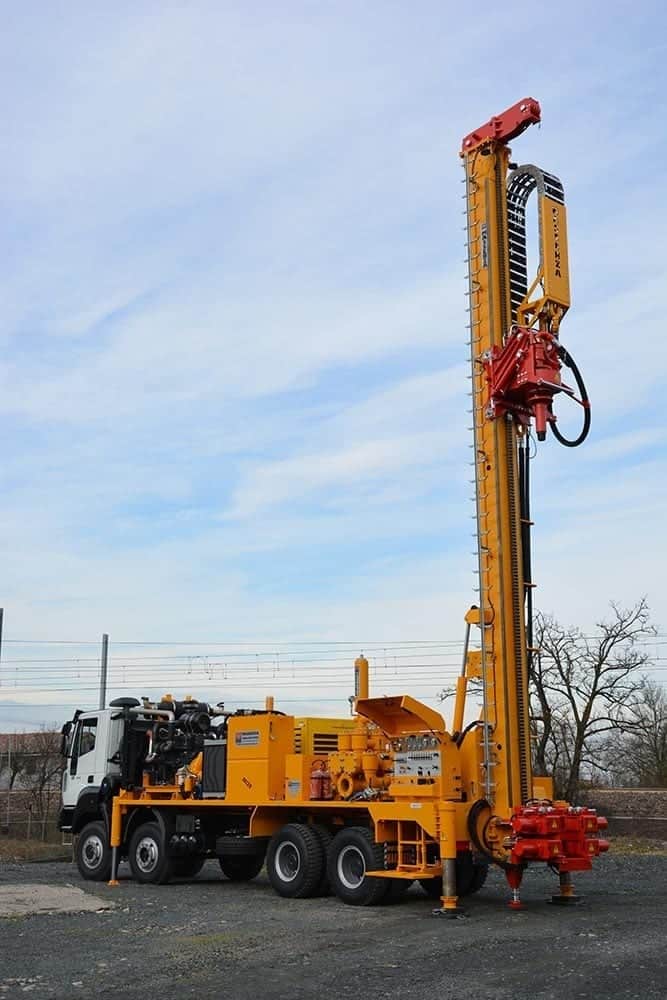

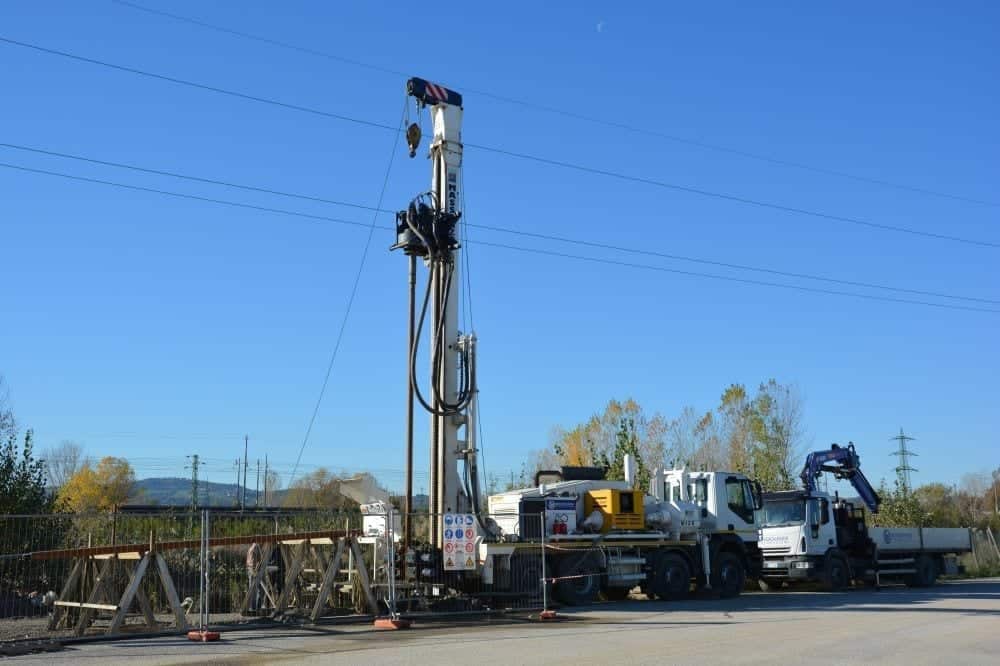

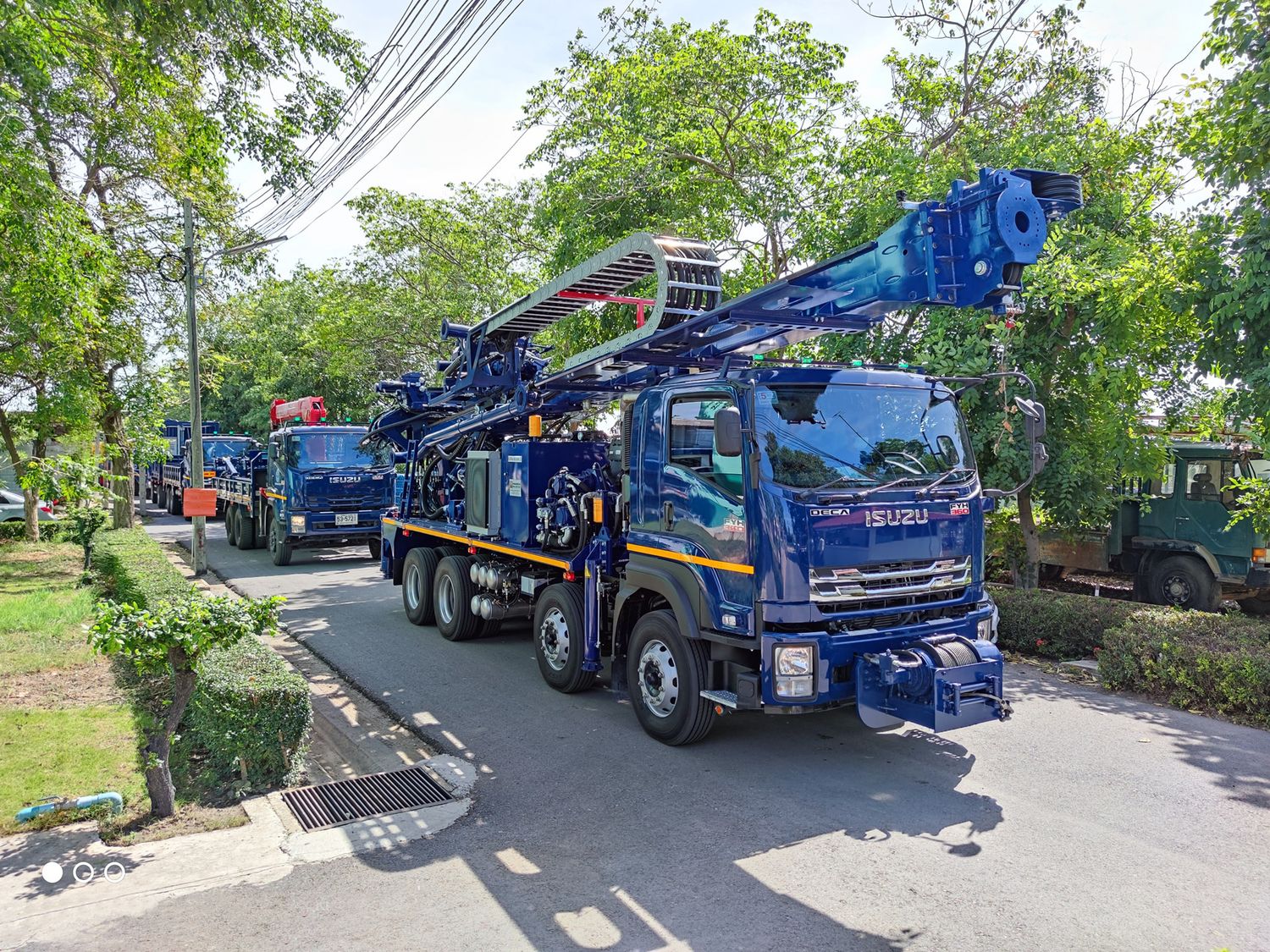

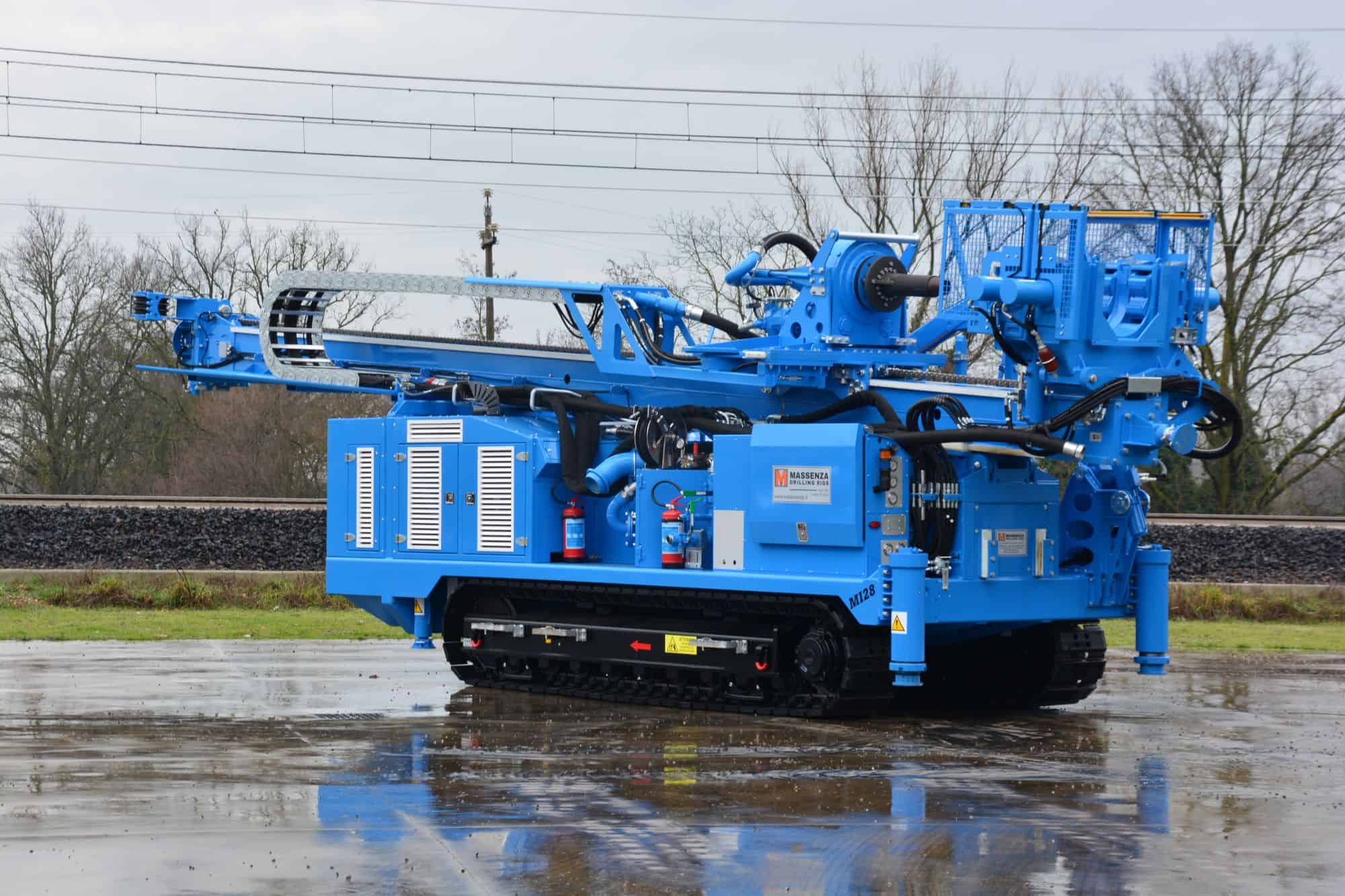

Drilling rig for water wells, mineral exploration, geothermal applications, coring, seismic, it is the most representative in the Massenza’s production range as although the moderate dimensions it has high technical characteristics in terms of pull-up and torque. For these reasons the rig can reach high depths, around (700m) and it is possible to work by mud pump 7”1/2 x 8”, which vastly improves drilling in bad terrain conditions. Its versatility permits to adopt various drilling methods: direct and reverse circulation by mud and by down the hole hammer. The rig can be either crawler or truck mounted and it can be operated remotely.| WORK METHODS |
|---|

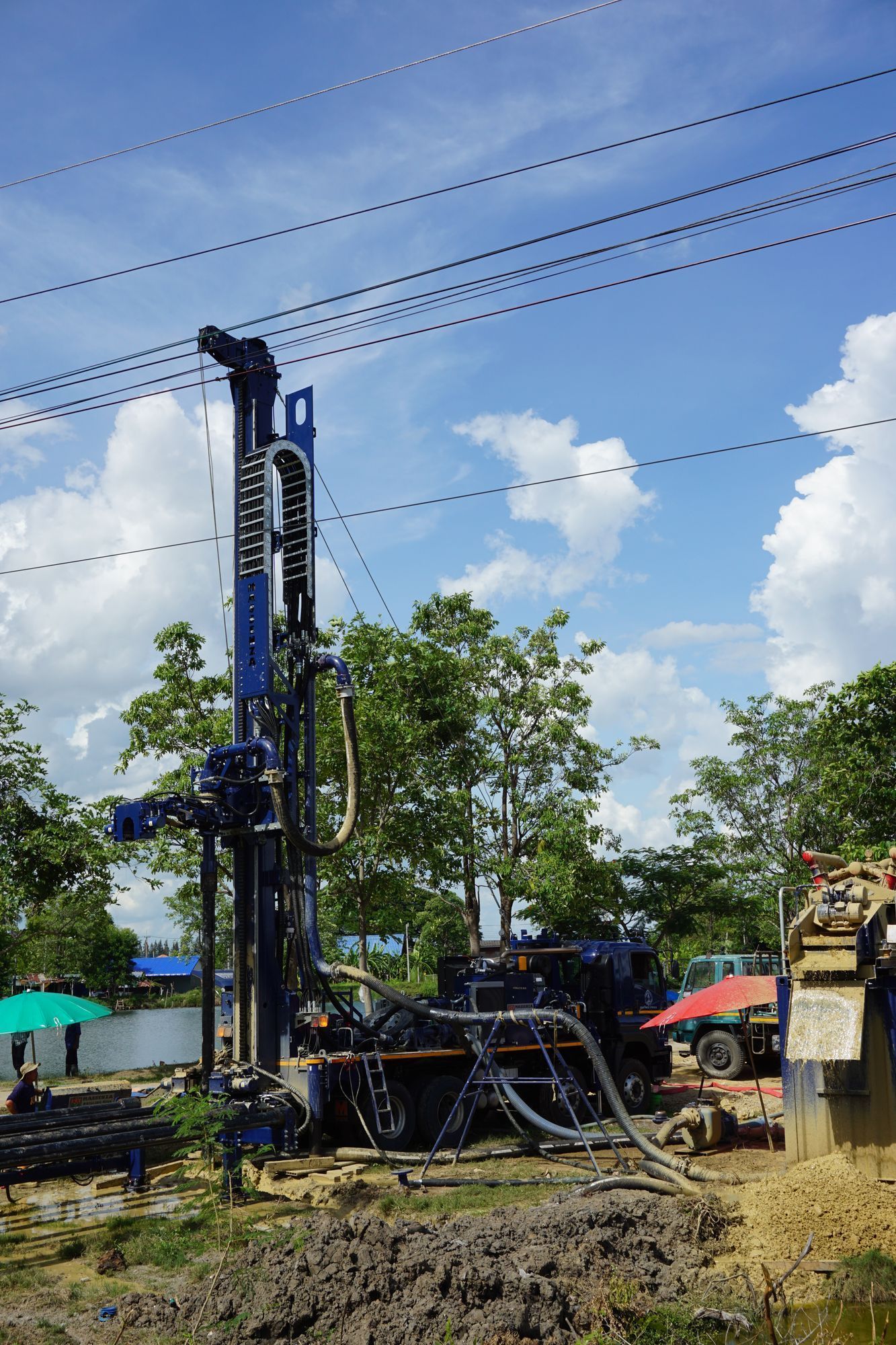

| -Rotation with direct circulation -Nucleus destruction with bleeding by water, mud and foambr> -Rotation with down the hole hammer -Reverse circulation -Coring |
| POWER PACK |
| Engine Power from 360 Hp (265 kW) to 630 Hp (463 kW) |
| FUEL TANK |
| Capacity from 300 litri (79 gal) to 600 litri (158 gal) |
| SLIDING MAST (OPTIONAL) |
| stroke 2,250 mm (7 ft 5”) |
| MAST |
|---|
| Maximum stroke of rotary head 8.4 m (27 ft 7”) Standard: maximum pull up 27,300 daN (61,373 lbf) – pull down 14,700 daN (33,047 lbf) Optional: maximum pull up 34,300 daN (77,109 lbf) – pull down 18,470 daN (47,210 lbf) |
| ROTARY HEAD |
| Maximum torque 35,380 Nm (26,094 lbf•ft) Maximum speed 1,400 Rpm |
| WINCH |
| Standard: Maximum line pull 7,000 daN (15,737 lbf) Optional: Maximum line pull 10,000 daN (22,045 lbf) Wire-line: Maximum line pull 1,300 daN (2,922 lbf) – 822 m (2,697 ft) of rope – 110 m/min (351 ft/min) |

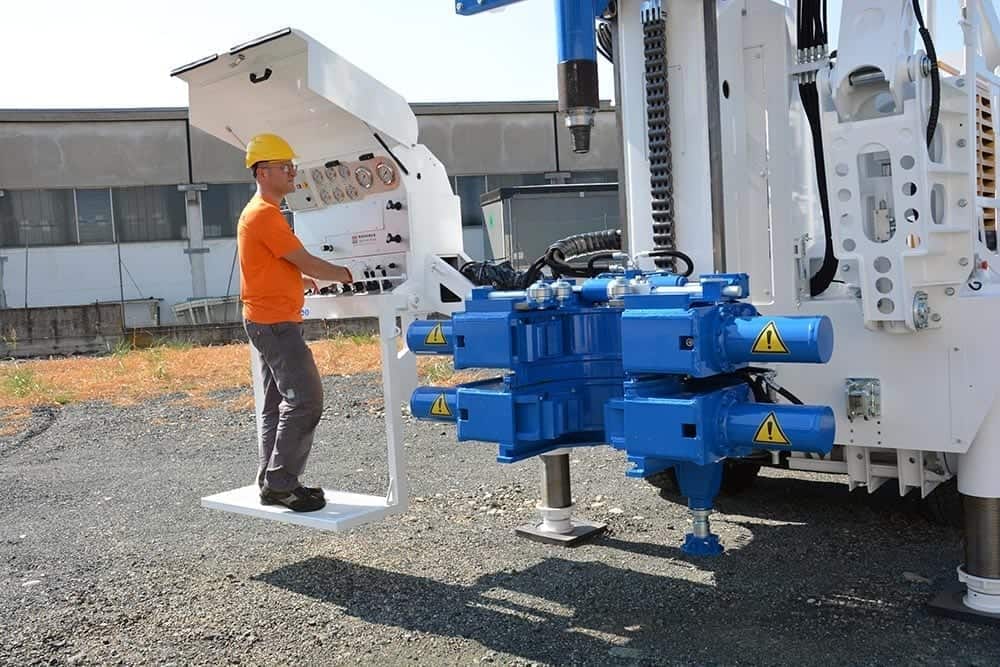

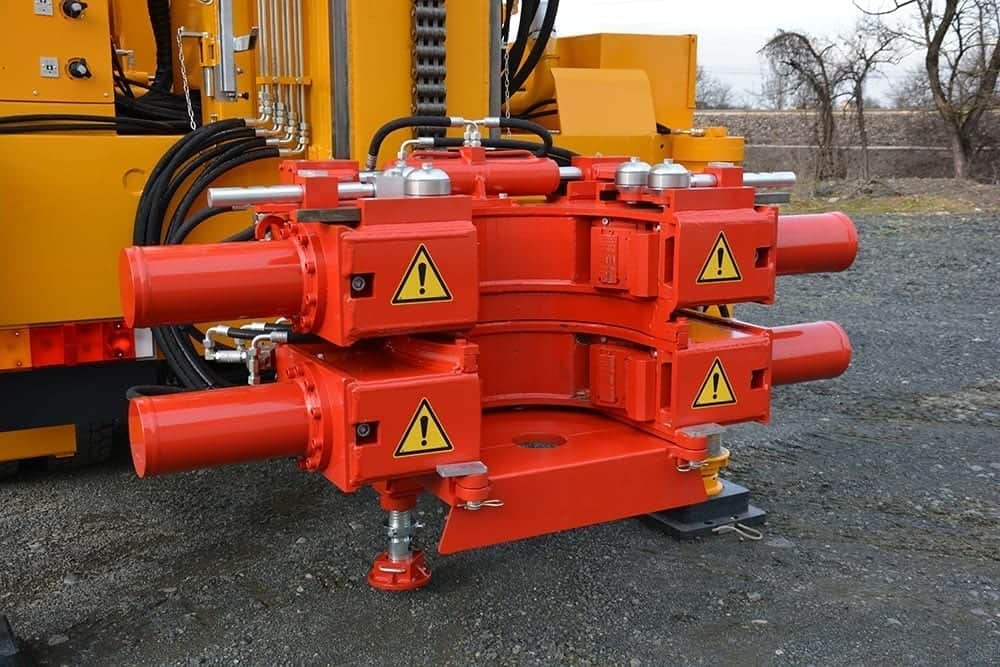

| DOUBLE HYDRAULIC CLAMP |
| Modello MS560: Maximum passage 560 mm (22”) |
DO YOU NEED MORE INFORMATION
ABOUT THE Mi28?
Video

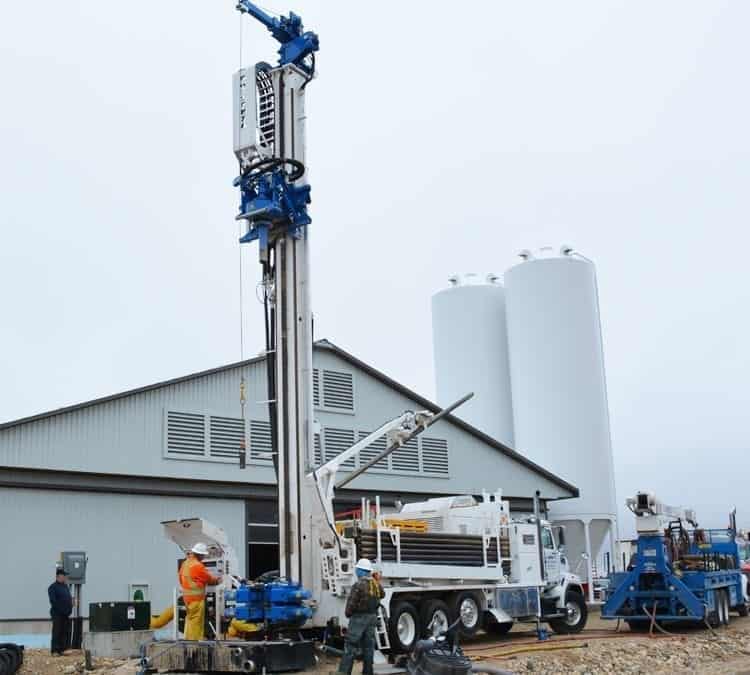

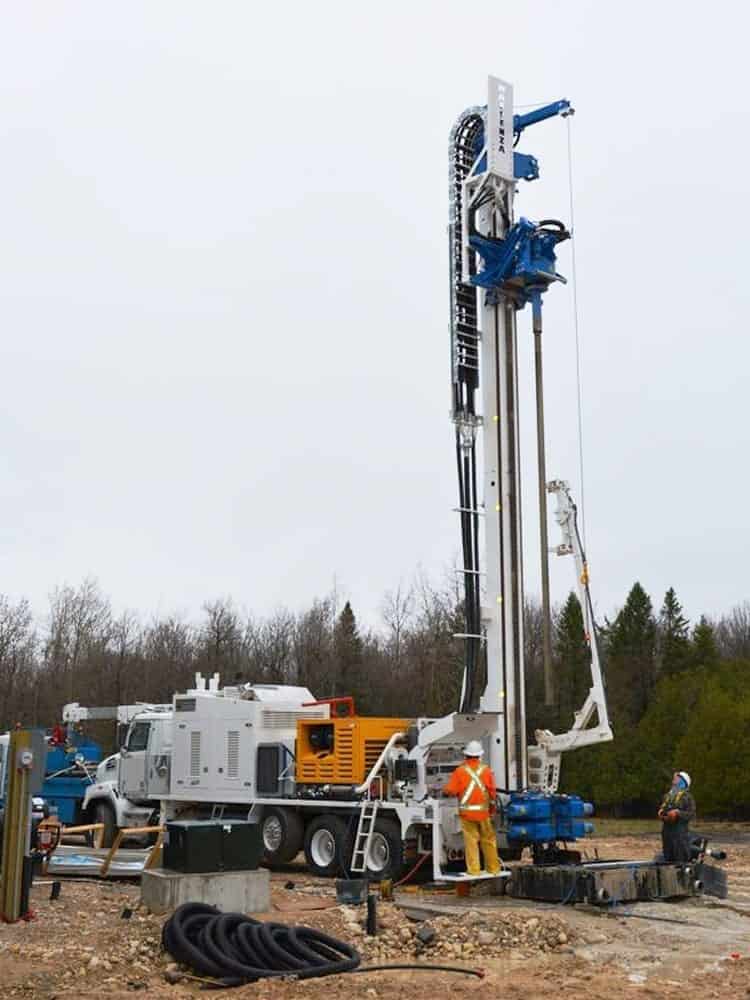

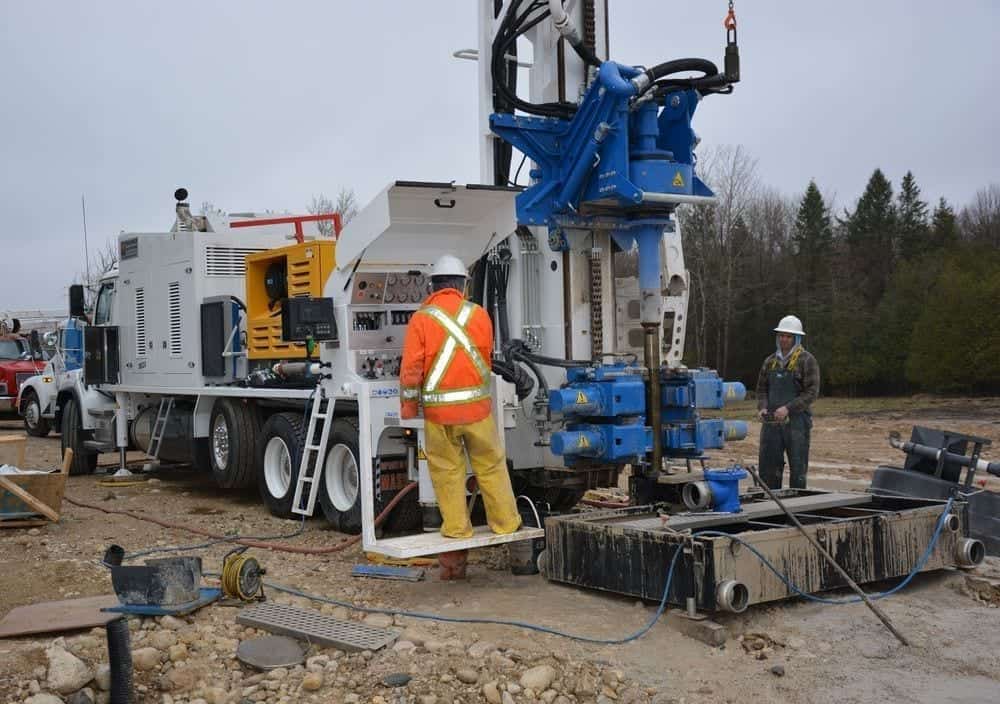

NEW MASSENZA Mi28 FOR DEEP WATER WELLS IN CANADA
