KURDISTAN - New MI12 for investigations of the subsoil
New milestone for Massenza: a new MI12 for underground investigations in Kurdistan, a country so far unexplored by the company.
The drilling rig for Kurdistan was designed for the use of any soil drilling and sampling system. Thanks to the completeness of its set-up, centrifugal pump, high pressure triplex pump for coring, wireline winch, percussion system, automatic SPT and high drill head, it can be used for any type of geotechnical test, giving the customer enormous flexibility.
The continuous work of the Department of Research and Development of Massenza allows the company to always be at the forefront of the market and to always offer new engineering solutions. All in order to facilitate the work of drilling and make the machines more and more productive and efficient, without ever forgetting reliability and durability.

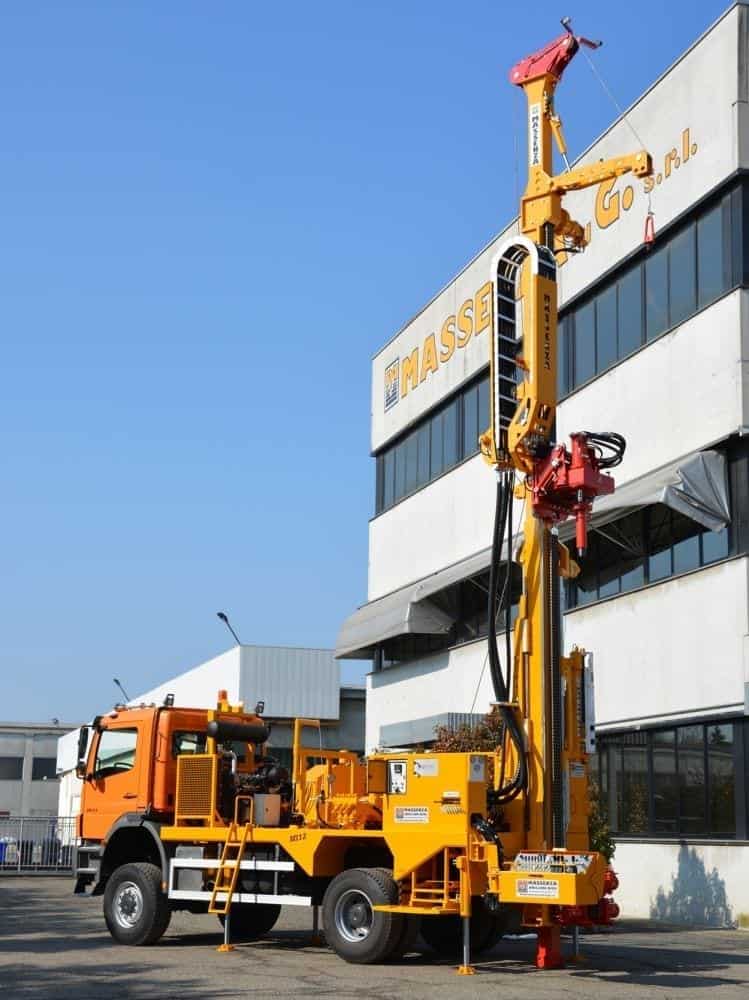

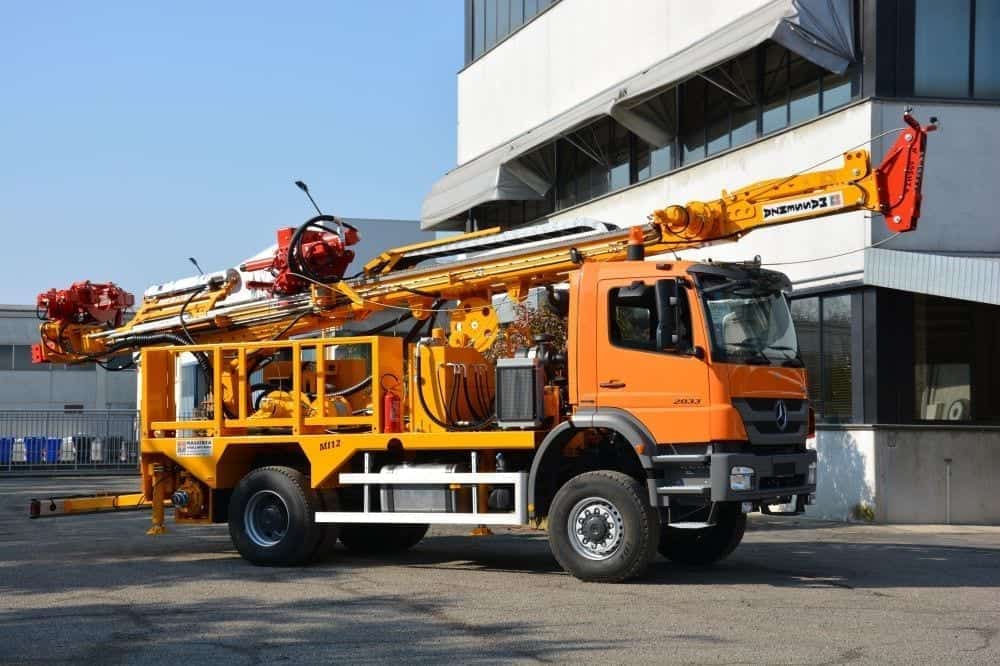

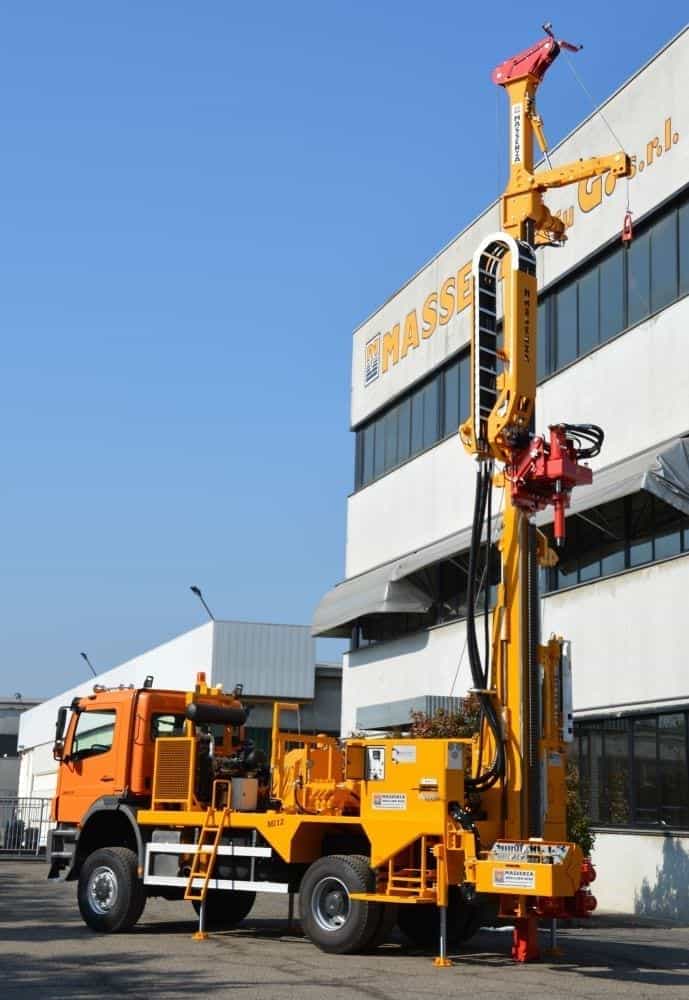

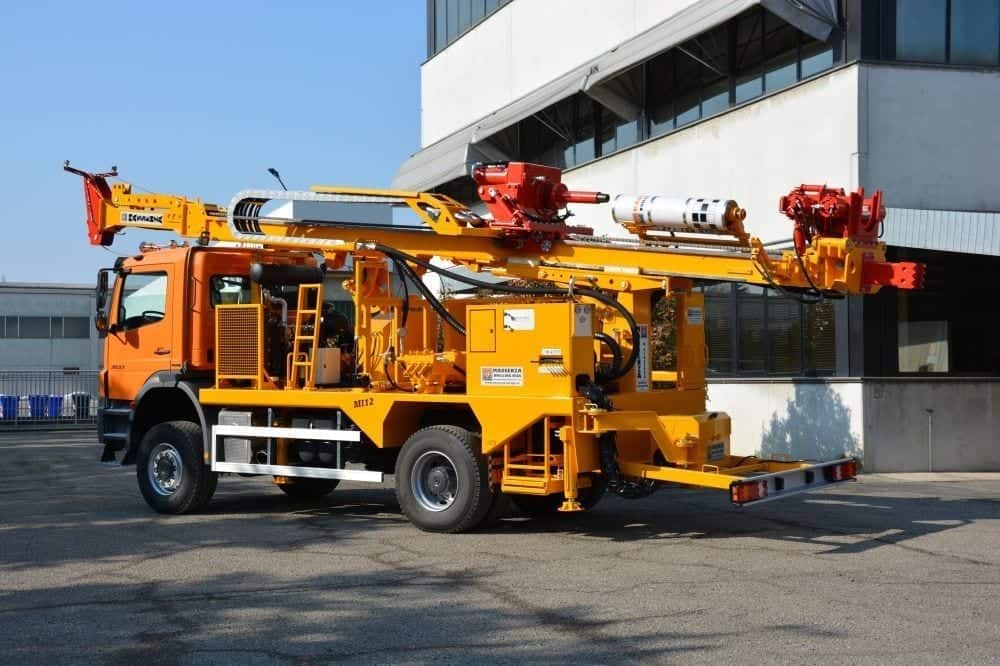

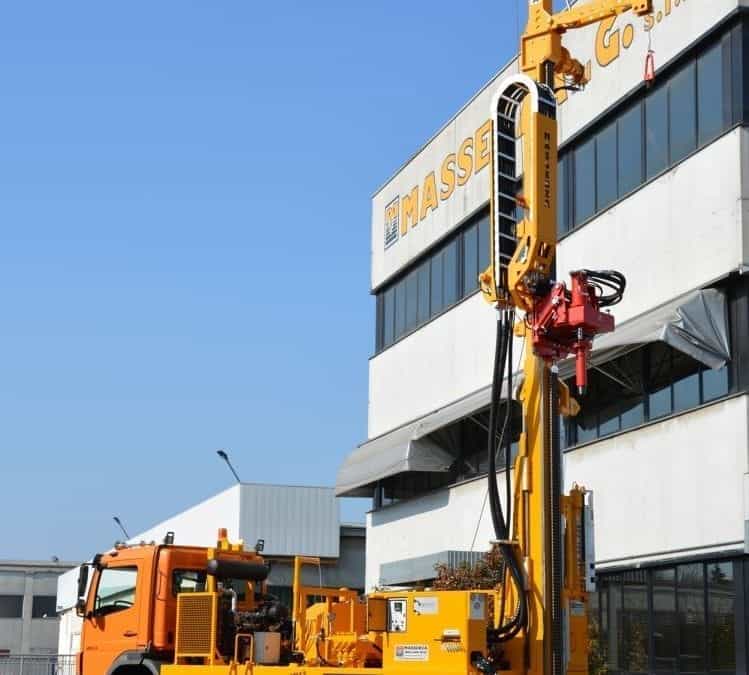

Below are the main features of the MI12 drilling machine:
AUXILIARY ENGINE
Maximum power 156 Hp (115 kW)

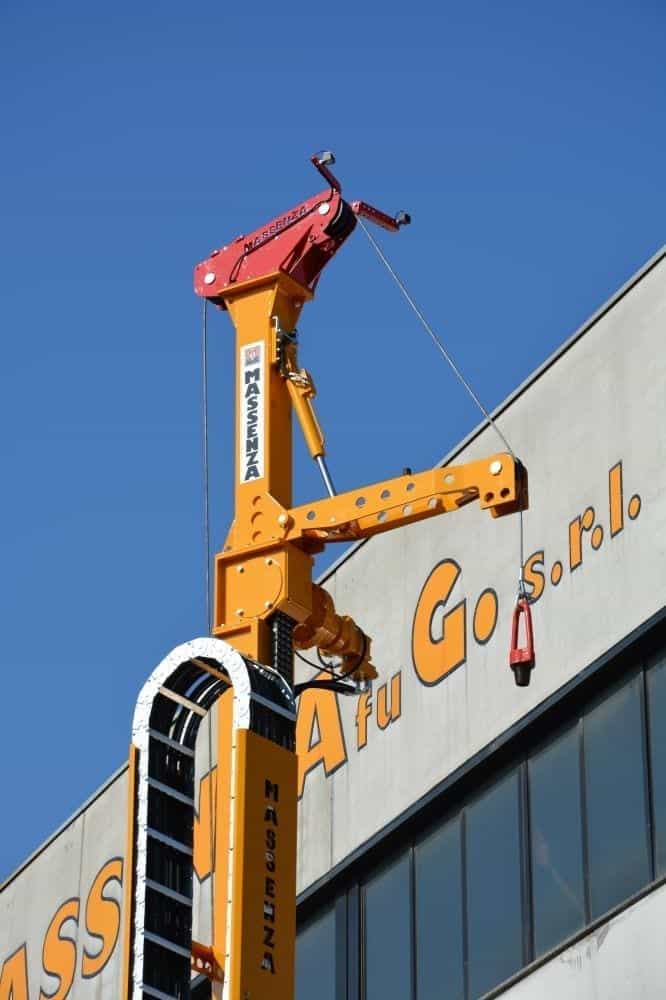

SLIDING MAST: stroke 900 mm (3 ft)
MAST: Rotation head stroke 6.6 m (21 ft 7 ")
Maximum thrust and thrust: 9,000 daN (20,233 lbf)

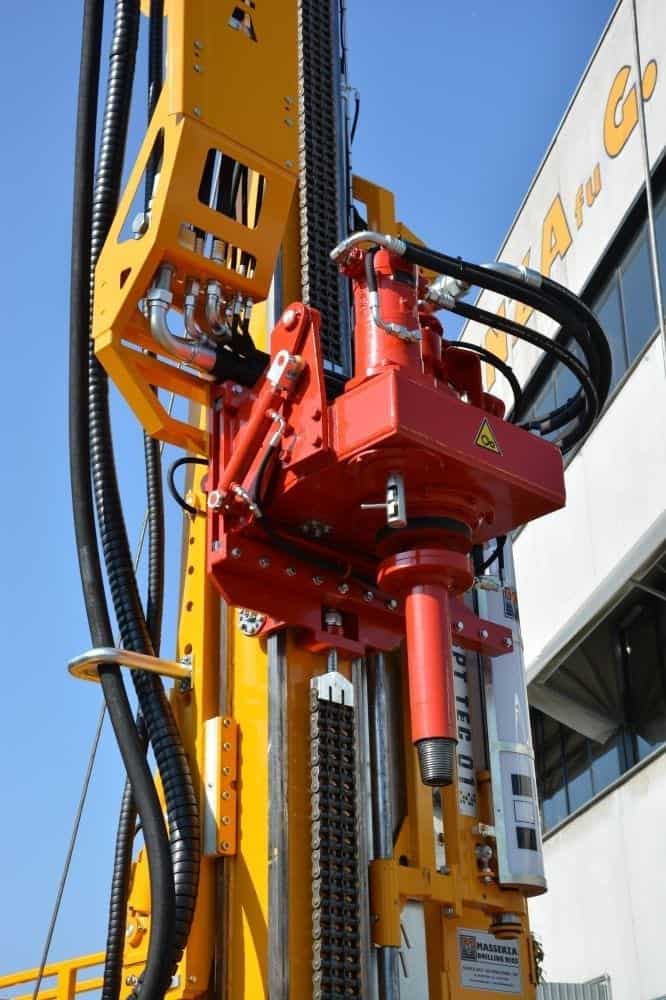

ROTARY HEAD
Max torque 9,630 Nm (7,102 lbf • ft)
Max speed 500 Rpm
SERVICE WINCH
Direct shot max 3,100 daN (6,970 lbf)
WIRELINE WINCH:
Direct shot max 3,100 daN (6,970 lbf)
Cable capacity: 254 m (833 ft)
DOUBLE HYDRAULIC CLAMP
Model MS300: max passage diameter 310 mm (12 ")
PERCUSSION SYSTEM
Percussion frequency: 600 rounds / min
CASING EXTRACTOR:
Maximum extraction force 25 tons
CENTRIFUGAL PUMP:
Maximum flow rate 2,000 l / min
HIGH PRESSURE TRIPLEX PUMP:
Maximum flow rate 140 l / min (37 GPM) at 69 bar (1,000 PSI)
HYDRAULIC PENETROMETER (SPT)
